Composition structure: usually consists of a base, column, slide, rotary workbench, spindle box, spindle parts, tool magazine parts, main transmission system, feed transmission system, lubrication system, hydraulic system, pneumatic system, cooling system and chip removal system, etc., working principle:
Clamping workpieces: Use clamps to steadily install the workpiece on the workbench to ensure that the workpiece does not move or shake during processing.

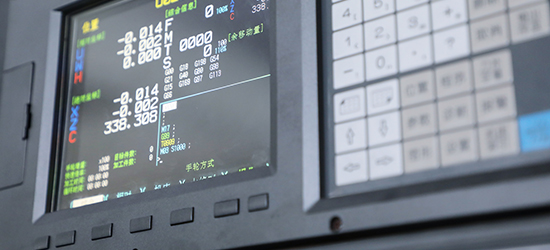

Programming control: The operator writes processing programs through the CNC system according to the machining requirements of the workpiece, and sets tool paths, cutting parameters and other information.
Tool selection and replacement: The CNC system automatically selects the appropriate tool according to the machining program, and controls the tool magazine and robot to install the tool on the spindle.
Machining motion: The spindle rotates at high speed under the drive of the motor, and the workbench moves in the X, Y, and Z axes according to the established path under the control of the CNC system to realize the relative movement between the tool and the workpiece, thereby completing the cutting and machining task.
Auxiliary function control: During the processing process, the CNC system will also control auxiliary systems such as cooling system, lubrication system, chip removal system, etc., to provide necessary support for the processing process.
