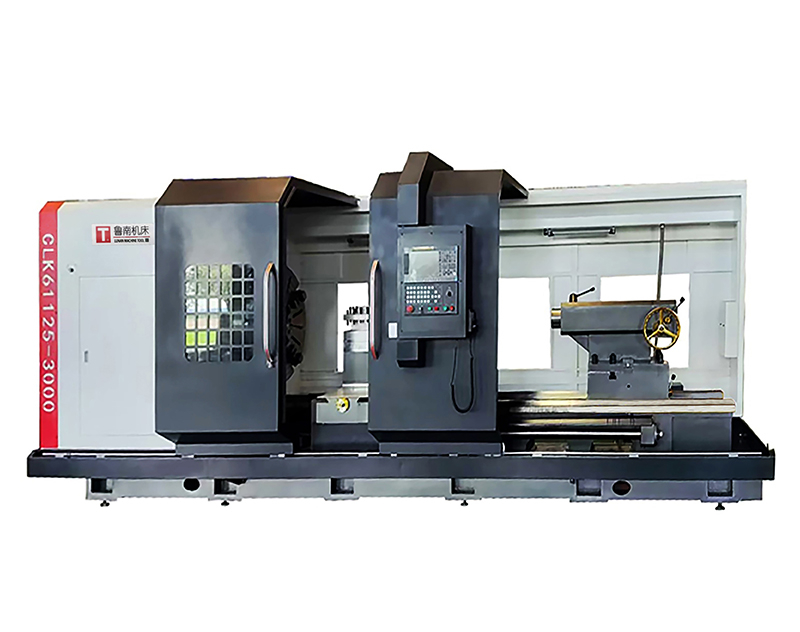

CK61125L
Structural features:
1. The overall casting structure of horizontal flat bed, aging treatment, and the overall machine has good stability.
2. Ultra-audio quenching of bed guide rails.
3. The joint surface of the bed saddle and the skateboard guide rail are 'plasticized' and the moving parts can prevent crawling.
4. The spindle speed speed regulation range is wide and multi-speed stepless speed regulation is adopted.
5. The appearance of the machine tool is reasonably protected and easy to maintain.
6. Follow-up control box for easy operation.
| Standard configuration: | Select configuration: |
1. Multi-speed gear (manual shift) speed regulation, stepless speed regulation in the gear; frequency converter motor; 2. Ordinary manual three-claw chuck; 3. Four-station electric tool holder; 4. Manual tailstock; 5. Fixed electronic handwheel; 6. Manual chip removal; 7. Double sliding door semi-protection; 8. GSK980TC3 CNC system. | 1. CNC systems such as FANUC, Siemens, Kanedi, Guangtai; 2. Moving hand pulse; 3. Ordinary four-claw chuck or hydraulic chuck; 4. Six/8 station electric tool holder; 5. Manual follower tool holder and center frame; 6. Hydraulic and pneumatic tail seat; 7. Automatic chip removal; 8. Full protection of double sliding doors. |
Technical parameters:
| project | unit | CLK61125 | CLK61100 | |
| Work scope | Large slewing diameter of bed | mm | φ1250 | φ1000 |
| Large swing diameter on the knife holder | mm | φ850 | φ650 | |
| Large workpiece length | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 | |
| Large turning length | mm | 1350/1850/2850/3850 | 1350/1850/2850/3850 | |
| Spindle | Spindle rotation range | r/min | 4th gear: 4-470 | 4th gear: 4-470 |
| Spindle through hole diameter | mm | φ130 | φ130 | |
| Spindle box center height | mm | 630 | 500 | |
| Normal three-claw chuck diameter | mm | φ1000 | φ800 | |
| Spindle end type | A2-15 | C11 | ||
| Spindle taper hole taper | mm | Metric 140 (1:20) | Metric 140 (1:20) | |
| Spindle motor power | KW | 22 | 18.5 | |
| Knife holder | Number of electric tool holders | 把 | 4 (standard configuration) | 4 (standard configuration) |
| Cutter size | mm | □40 | □32/□40 | |
| journey | X-directional itinerary | mm | 650 | 600 |
| Z-directional itinerary | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 | |
| Feed | Fast movement of X-axis | m/min | 4 | 4 |
| Z-axis moving quickly | m/min | 6 | 5 | |
| X/Z toward small feed | mm | 0.001 | 0.001 | |
| X/Z feed range | mm/min | 1-2000 | 1-2000 | |
| Tail seat | Tail seat sleeve diameter | mm | φ160 | φ120 |
| Taper taper of tail seat sleeve | Mo's | MT6 | MT6 | |
| Tail seat sleeve stroke | mm | 300 | 250 | |
| guide | Bed rail width | mm | 755 | 660 |
| Rail type | Hard track | Hard track | ||
| Wire screw | X-direction roller screw diameter and pitch | mm | Ф50*8 | Ф32*5/Ф32*6 |
| Z-direction roller screw diameter and pitch | mm | Ф80*12 | Ф63*12 | |
| Accuracy | X-direction positioning accuracy | mm | 0.035 | 0.035 |
| Z-direction positioning accuracy | mm | 0.045/0.05/0.055/0.06 | 0.045/0.05/0.055/0.06 | |
| X-direction repeat positioning accuracy | mm | 0.012 | 0.012 | |
| Z-direction repeat positioning accuracy | mm | 0.016/0.018/0.023/0.028 | 0.016/0.018/0.023/0.028 | |
| other | Net weight of the machine tool | kg | 9500/10800/13500/16100 | 6800/8200/11000/13800 |
| Area | mm | 4250/4750/5750/6750*2150 | 4250/4750/5750/675*1850 | |
