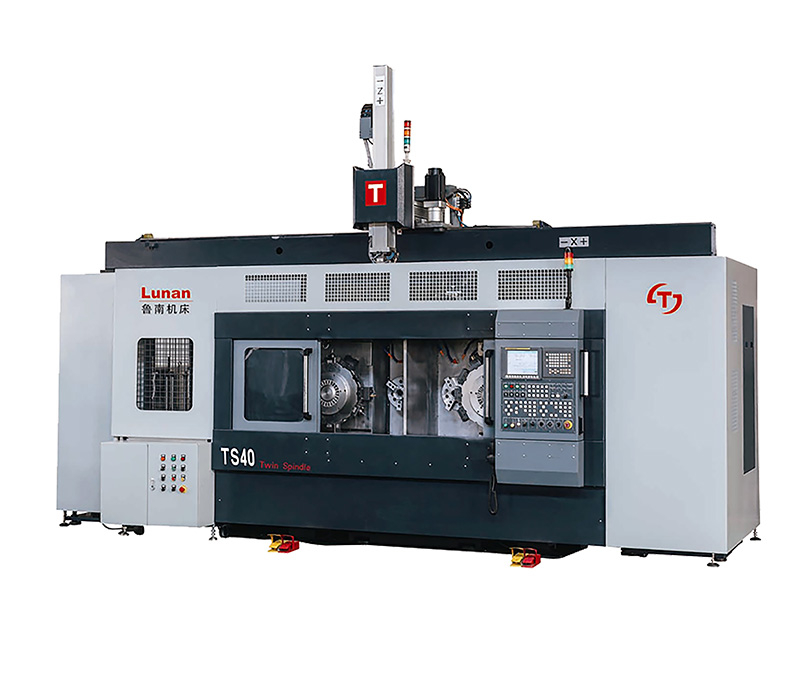

TS40
Structural features:
1. Single-machine integration to realize turning and milling composite processing and material transfer automation, suitable for flexible automated production of disk workpieces.

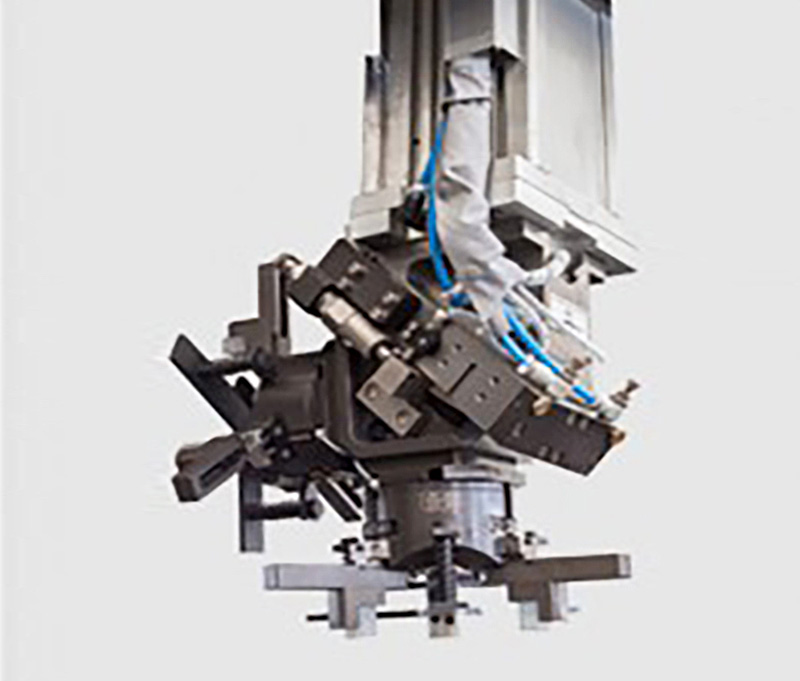

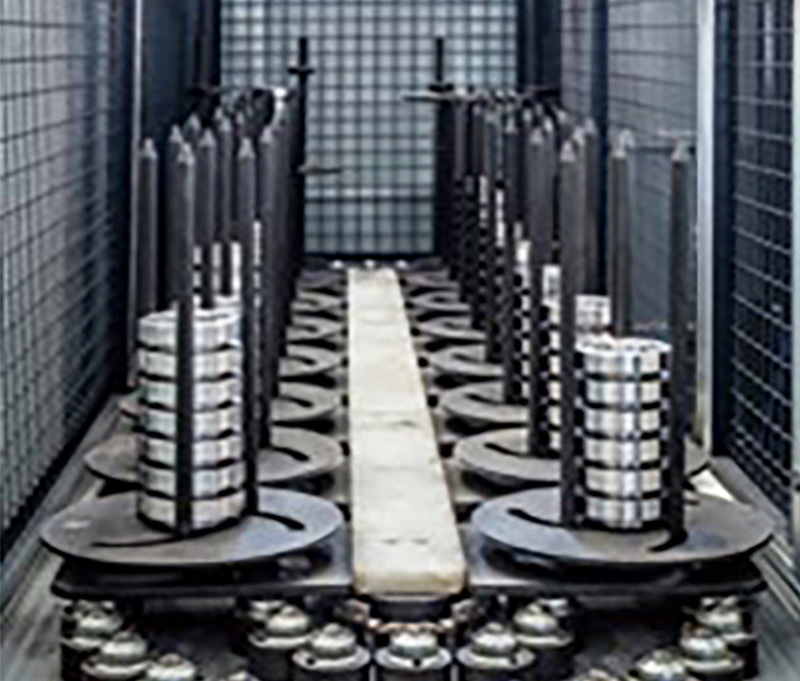

2. The large-capacity automatic silo system and double grippers are equipped with an elastic push mechanism, which can automatically process both front and back sides of the disk parts at the same time.

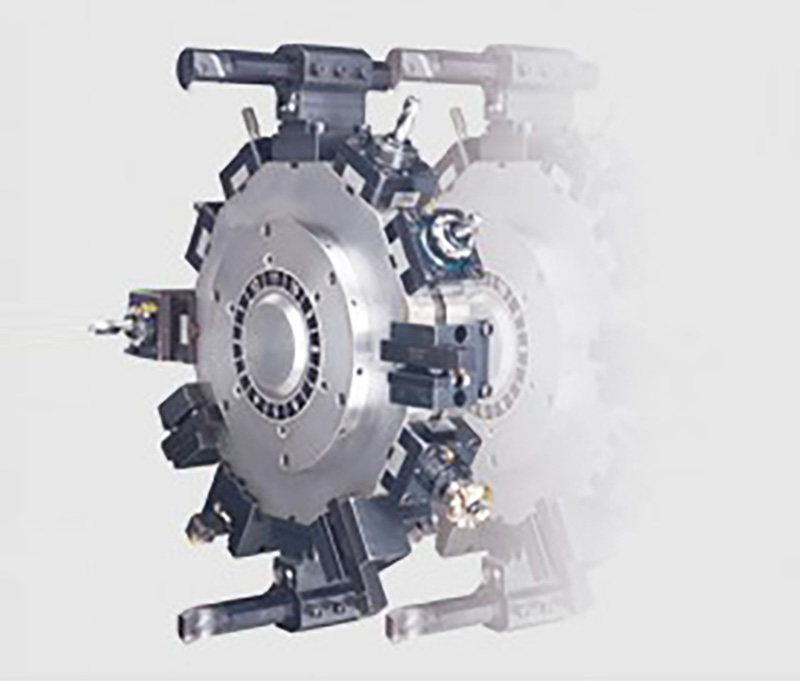

3. Double spindle and double turret tower symmetrical layout, high-rigid three-axis linkage truss robot, strong grasping and lifting capabilities, and a wide range of applications.
4. Fully enclosed protective cover and rear-mounted automatic chip exhaust machine are safe and beautiful, and prevent environmental pollution.
Technical parameters:
project | unit | parameter |
Large machining diameter | mm | φ400 |
Large processing length | mm | 200 |
Spindle speed | r/min | 30-3500 |
Main motor power | KW | 15/18.5 |
Hydraulic chuck | 寸 | 10 |
Number of trunk positions | 把 | 12 (optional power turret) |
X-axis (X1/X2) stroke | mm | 220 |
Z-axis (Z1/Z2) stroke | mm | 220 |
Rail type | All roller rails | |
Net weight of the machine tool | kg | 9000 |
External dimensions | mm | 5500*3500*4000 |
