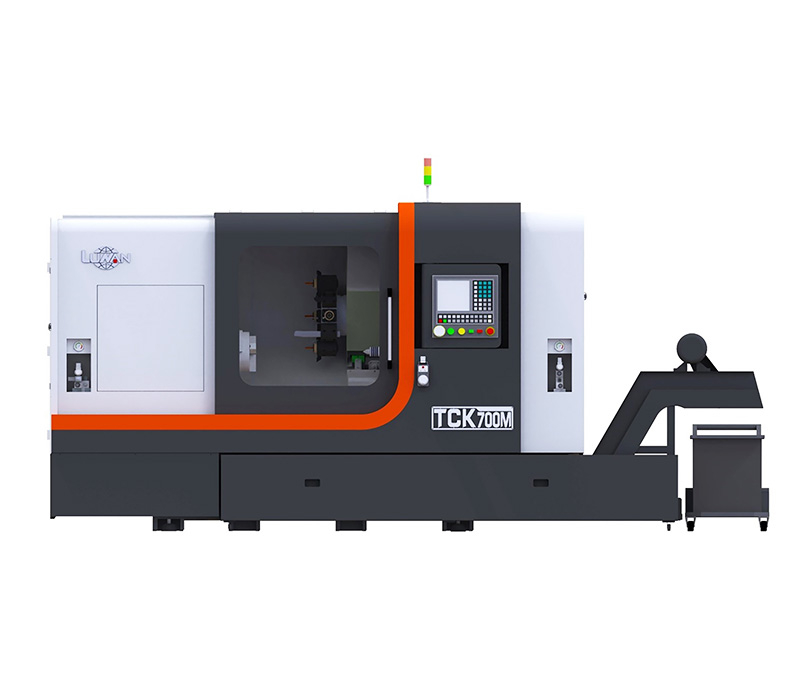

TCK700 Series Turning Center

Availability:

Quantity:



Inquire Add to Basket

Model:
TCK700

Product Description

Structural features:

1. Fully-functional inclined bed CNC lathe, with two basic linear axes X and Z, optional Y axis and high-precision C axis.

2. The tailstock can be driven hydraulically to achieve long-stroke integrated movement.

3. The 30° inclined bed and base are integrated design to maintain good and long-term high rigidity and stability.

4. Both the X and Z axes use linear rolling guides with high precision, high load capacity and high reliability.

5. The Y-axis adopts a highly rigid rectangular guide rail, and the sliding contact surface is applied to plastic.

6. High-speed, high-precision, and high-rigid elastic shell spindle unit.

7. Adopt a modular design and the product has multiple combinations.

8. Especially suitable for high-speed, high-precision turning and milling composite processing of medium and small discs and shaft parts.

Standard configuration:

Select configuration:

1.10-inch three-claw hydraulic chuck (including soft claws) and rotary cylinder;
2. The rated power of the servo spindle motor is 11KW;
3. The spindle high speed is 4000 r/min;
4.12-station servo turret/power turret/Y-axis power turret;
5. Rigid tapping;
6. External cooling system (including chip tray, cooling box, cooling pump);
7. Manual chip discharge;
8. Full protection sheet metal outer shield and internal screw and rail shield;

9. CNC system: GSK988T.

1. CNC system: new generation, Kanedi, FANUC, Siemens or others;
2. Automatic chip removal;
3. Servo tailstock;
4. Sub-spindle;
5. Elastic chuck and chuck;

6. Knife fitting instrument and bar feeder.

Technical parameters:

project		unit	TCK700MY	TCK700M	TCK700
Work scope	Large diameter of workpiece rotation of bed	mm	Ф700
	Large machining diameter (but drag plate/pass drag plate)	mm	Ф550/Ф380
	The spindle is equipped with a large distance from the top of the tailstock with the end face (excluding the claws).	mm	740
	Effective machining length	mm	700
Spindle	Spindle end specifications		A2-8
	Spindle inner cone		Metric Ф100 (1:20)
	Standard chuck specifications for spindles	寸	Hydraulic 10'
	Bar diameter (hydraulic chuck)	mm	Ф74
	Spindle speed	r/min	30-4000
	Spindle power	KW	11
Knife Tower	Dot Tower Type		Horizontal
	Number of trunk positions	把	12
	Square handle tool size	mm	□25
	Round handle tool size	mm	Ф40
	Power tool holder specifications (optional)		BMT55/BMT65		/
	Power tool speed	r/min	50-3000		/
journey	X-axis stroke	mm	250
	Z-axis stroke	mm	800
	Y-axis stroke	mm	±45	/
Feed	X/Z axis fast shift speed	m/min	24/24
	Y-axis fast shift speed	m/min	10	/
Bed body	Incline angle	度	30°
	Guide rail form		Y-axis: hard rail	All lines
			Remain: Line rails
	Single rail width X/Z/W axis (tail seat)	mm	45/45/45
	Y-axis guide width/span	mm	46/320	/
Wire screw	X-axis screw	mm	Ф32*8
	Z-axis screw	mm	Ф40*10
	Y-axis screw	mm	Ф32*5
Tail seat	Tail seat feed method		Integrated hydraulic drive
	Tail seat inner cone	MT	MT5
	Tail seat stroke	mm	500
Accuracy	Positioning accuracy	mm	±0.008
	Repeat positioning accuracy	mm	±0.004
other	Net weight of the machine tool	kg	5000	4800	4800
	Dimensions: left and right * front and back * top and bottom	mm	350019002200 (excluding chip remover)
