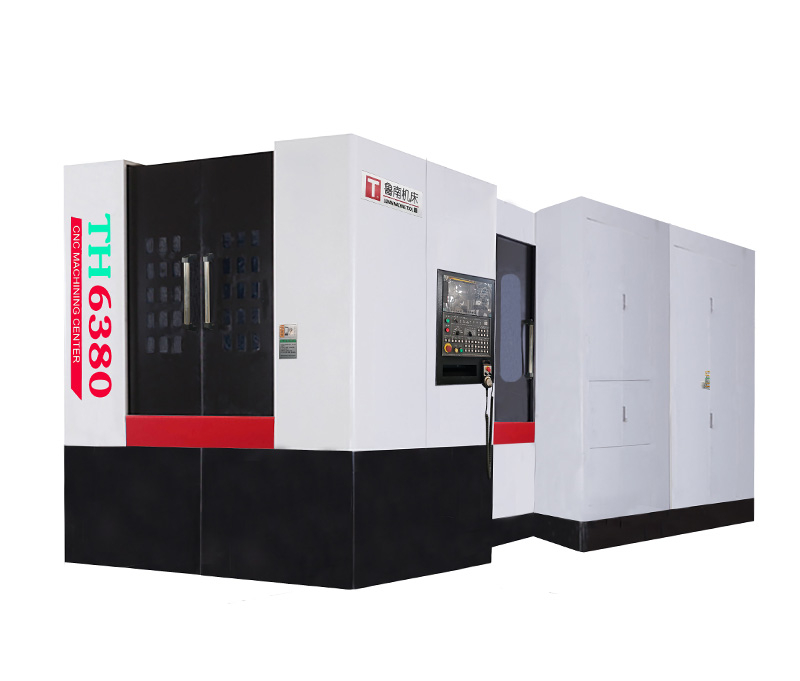

TH6380 Horizontal Machining Center (T)

Availability:
Quantity:
  • TH6380

Product Description


Structural features:

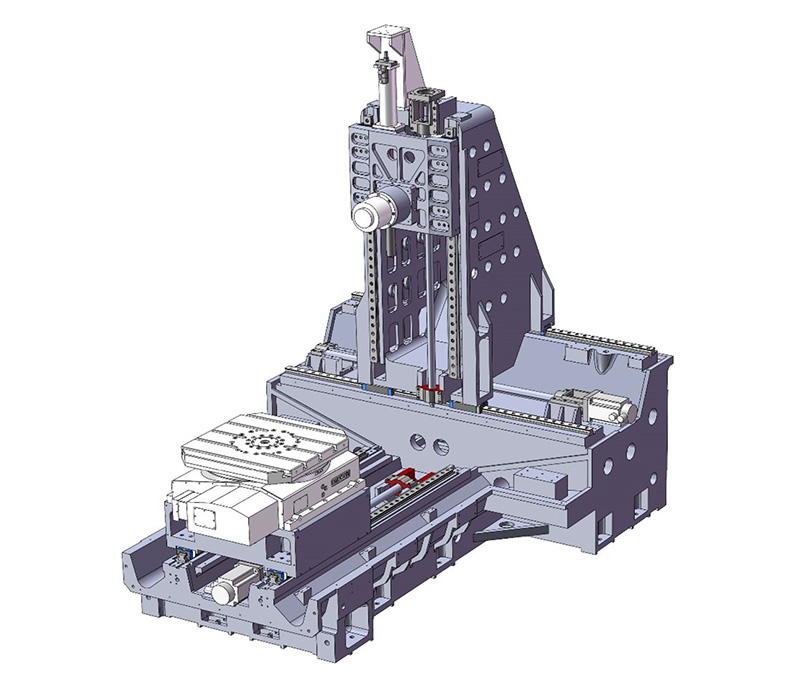

1. The overall layout of the machine tool adopts a regular T-shaped structure with three points of support.

2. The column adopts the 'gantry' frame-moving column-type structure, and the spindle box is in a symmetrical form.

3. The CNC rotary table adopts high-precision cross-roller bearings.

4. The X/Y/Z three axes use large pitch, high-precision, high-rigid ball screws and heavy-load roller rails.

5. The spindle adopts a high rigid structure design, and the BT50 conical hole is suitable for low-speed and strong cutting.

6. The cooling system adopts the cooling method of the center of the spindle or the end surface ring spray of the spindle.

7. The fully protective design of the machine tool has a novel and unique appearance.

8. The machine tool can realize the coarse finishing processing of various box types, shells, molds and other complex parts at one time.



Standard configuration: Select configuration:

1.FANUC 0i- MF5 CNC system;
2. CNC rotary table: minimum split angle 1°;
3. BT50 chain tool magazine/disc tool magazine;
4. Belt type BT50 central water outlet spindle, speed 6000RPM;
5. X, Y, Z axis heavy-load roller linear guide;
6. External cooling system;
7. Pneumatic system;
8. Spindle box automatic balancing system;
9. Hydraulic system;
10. Automatic chip removal system;

11. Full protection.



1. CNC system: FANUC 0i- MF1/3, Kanedi, Huazhong, SIEMENS, Mitsubishi or others;
2. CNC rotary table: minimum split angle 0.001°;
3. Belt type BT50 central water outlet spindle, speed 10000 RPM;
4. Central water outlet machine;
5. Non-center water outlet spindle or direct-connected spindle;
6. Manual chip removal system;

7. Full protection of external protection with rain curtain spray.







Technical parameters:


project unit TH63100 TH6380 TH6363A TH6350A
Work scope X-directional itinerary mm 1600 1400 1000 800
Y-direction itinerary mm 1200 1000 1000 700
Z direction itinerary mm 1250 1000 900 700
Distance from the end face of the spindle to the center of the workbench mm 250-1500 150-1150 85-985 60-760
Distance from the center of the spindle to the work surface mm 150-1350 105-1105 95-1095 45-745
Spindle High spindle speed r/min 6000
Spindle conical hole
BT50/190 BT50/155
Spindle motor power KW 18.5/22 15/18.5 11/15
Workbench Workbench area mm 1000*1000 800*800 630*630 500*500
Large load capacity of workbench kg 3000 2000 1200 600
Large workpiece rotation diameter mm Ф1800 Ф1500 Ф1300 Ф1100
T-slot size mm 7-22*125 5-22*160 5-18-125 5-18-100
Small segmentation angle of B axis deg 1°/0.001°
Grading accuracy Arc Seconds 10
Repeat accuracy Arc Seconds ±2
Tool library Tool magazine capacity (standard) 40 40 24/30 24
Tool (near/empty) Large diameter mm φ125/φ230
Large length of tool mm 350
High weight of tool kg 18
Feed X/Y/Z axis moves quickly m/min 20/20/20
Cutting feed speed mm/min 1-10000
guide Rail type
Three-axis rail
Accuracy Positioning accuracy mm 0.018 0.016 0.012
Repeat positioning accuracy mm 0.01 0.01 0.008
other Net weight of the machine tool kg 29000 18000 15500 13500
External dimensions mm 7850*5900*3850 6250*4500*3475 5450*4500*3475 5450*4500*3475
