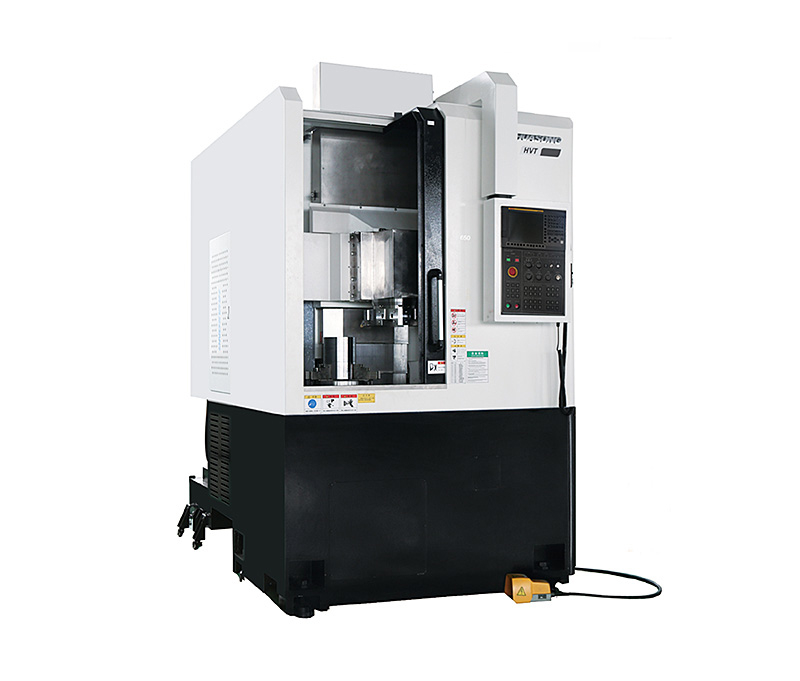

HVT650 CNC vertical lathe

Mechanical characteristics:

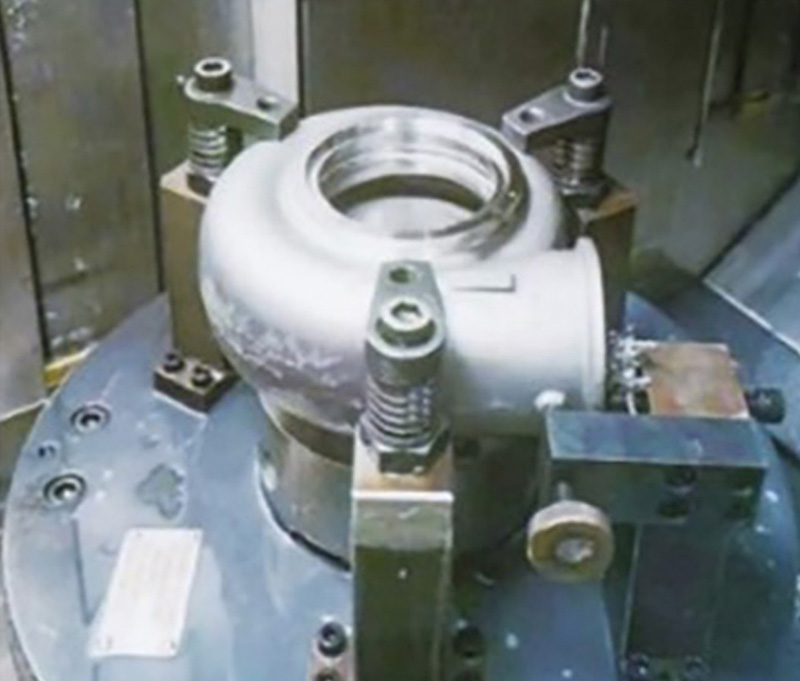

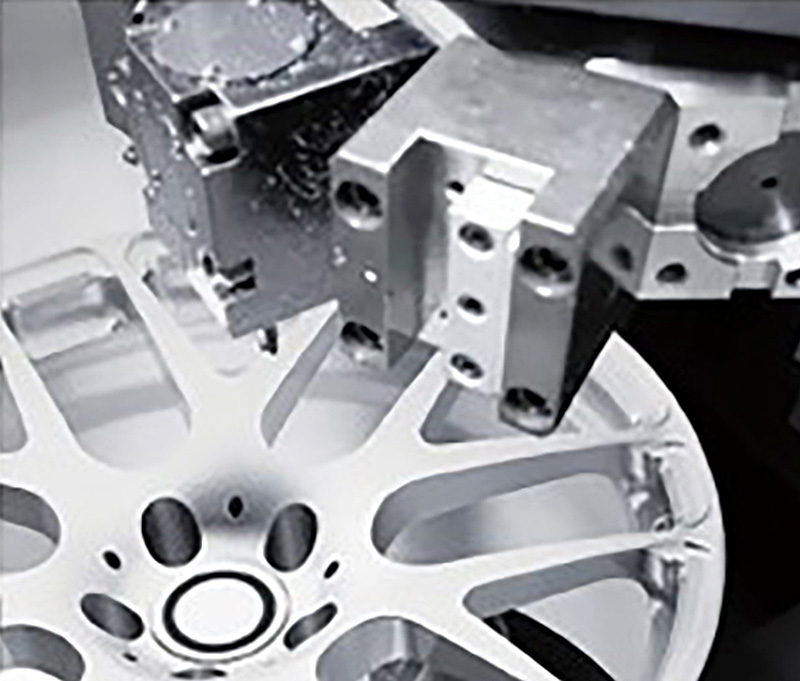

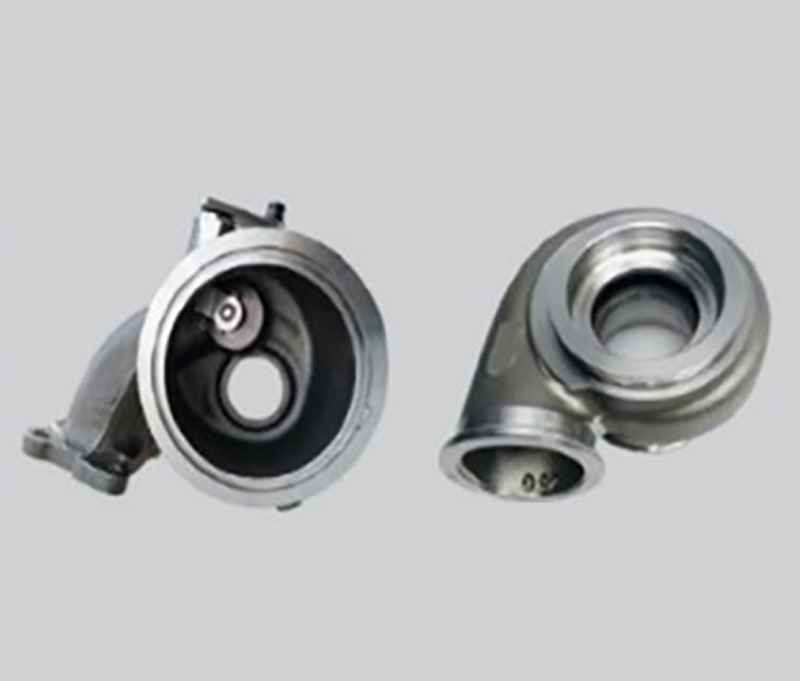

1. It is especially suitable for processing large, thin, heavy and irregular shape parts, and it is easy to load and unload parts and has high efficiency.

2. The cylindrical quality of the machining parts can effectively avoid elliptical processing caused by the inertia of the parts.

3. To meet the needs of the production line, you can mass-produce parts online.

4. The bed and base are integrated structures to ensure that the machine tool has high rigidity and high stability.

5. Small area covers and increases the efficiency of factory use.

Standard configuration:
1. Full cover sheet metal 2. Hydraulic chuck and rotary cylinder 3. Soft claw 4. Hydraulic system 5. Automatic lubrication system	6. Oil pressure chuck foot switch 7. Working light 8. Transformer 9. Three-color warning light 10. Cutting water system and water tank	11. Chain type iron chip conveyor 12. Iron chip truck 13. Electric box heat exchanger 14. Toolbox

Technical parameters:

project		unit	HVT550	HVT650	HVT800	HVT1000
Mechanical specifications	Large slewing diameter	mm	650	800	1000	1200
	Large slewing diameter on skateboard	mm		530	450	700
	Large cutting diameter	mm	600	650	800	1000
	Large cutting height	mm	500	750	750	850
Spindle	Spindle nose specifications		A2-8	A2-11	A2-11	A2-15
	Spindle bearing diameter	mm	130	150	160	200
	Hydraulic chuck specifications	寸	12	18	24	32
	Spindle speed	r/min	2500	2000	1500	700
	Large spindle torque	Nm	342/423	572/764	686/917	1008/1260
Knife Tower	Dot Tower Form		Horizontal	Horizontal/vertical	Horizontal/vertical	Vertical
	Number of tool positions		12/8	12/8	12/6	6/4
	Tool size	mm	□25/φ40	□32/φ50	□32/φ50	□32/φ50
Feed	X-axis stroke	mm	315	570	660	750
	Z-axis stroke	mm	550	750	750	850
	Y-axis stroke	mm
	X-axis fast feed speed	m/min	20	20	20	15
	Z-axis fast feed speed	m/min	20	20	20	15
	Y-axis fast feed speed	m/min
	Cutting feed speed	mm/min	0-5000	0-5000	0-5000	0-5000
Motor	Spindle motor	Kw	15/18.5	22/30	22/30	22/30
	Hydraulic system motor	Kw	2.2	2.2	2.2	2.2
	Cooling pump motor	Kw	0.75	0.75	0.75	0.75
other	Capacitance used	KVA	35	40	50	60
	Machine tool area	mm	1620*3200	2100*3500	2380*3600	2750*3800
	Machine tool height	mm	3100	3600	3650	3950
	The weight of the whole machine	kg	6000	8500	11000	15000
