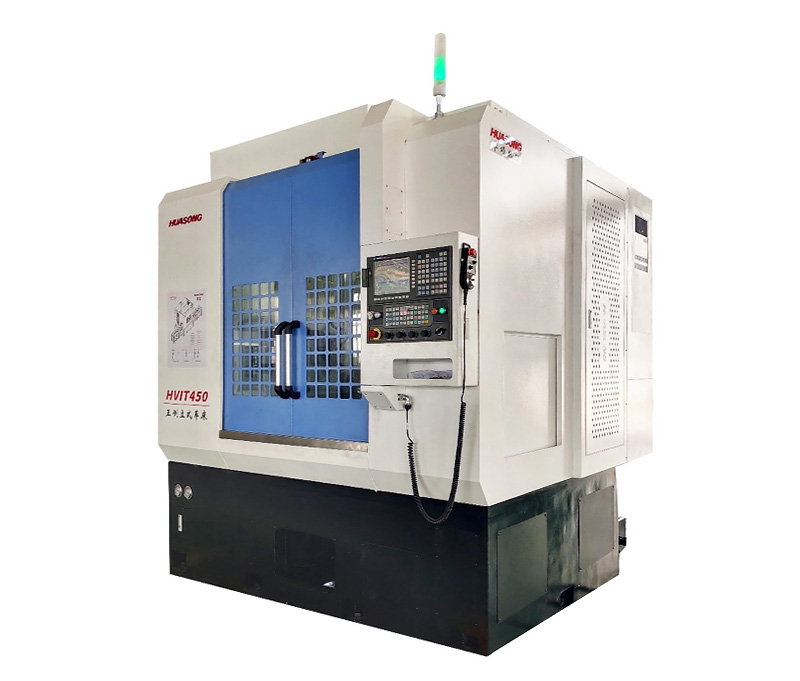

HVIT450 upside-down CNC lathe

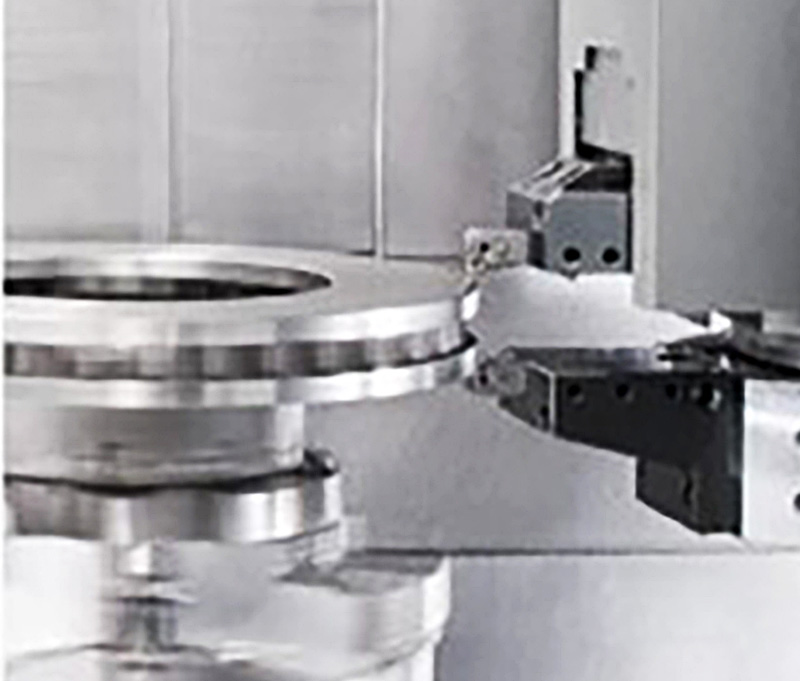

Mechanical characteristics :

1. Adopt a dual-spindle double-turret structure, equipped with a positive spindle and an inverted spindle to realize dual-channel synchronous turning processing.

2. Configure the servo turret, which has smooth tool change and high efficiency.

3. Optional power turret tower to realize automatic turning and milling turning processing.

4. Suitable for high-efficiency batch automation processing of car brake discs, wheel hubs, gears and other disc parts.

Automation features:

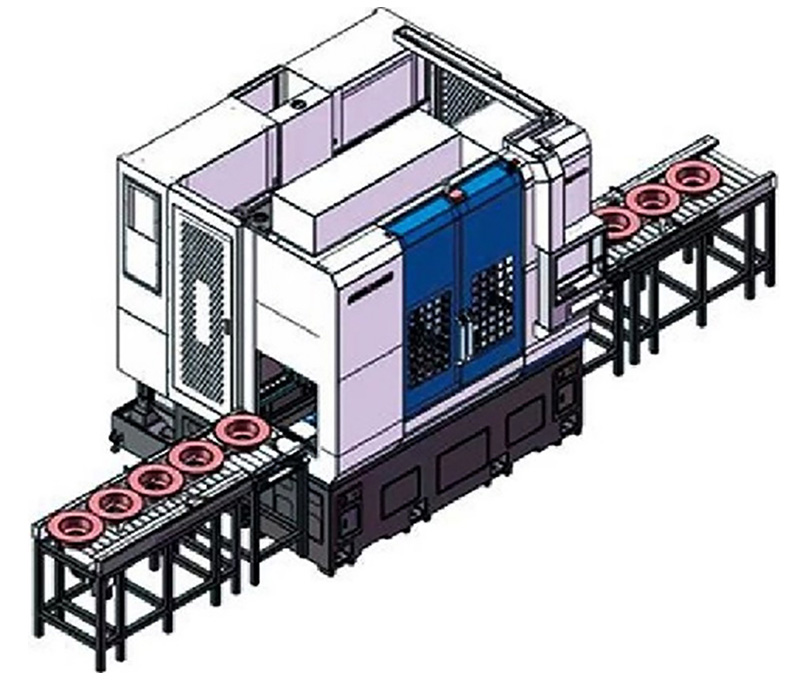

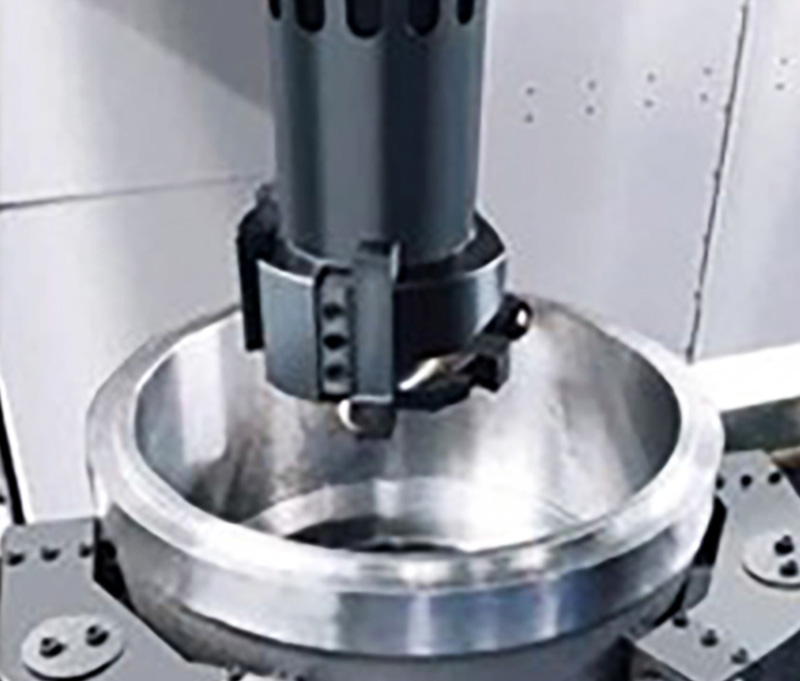

1. Built-in automatic loading and unloading mechanism, no external robot is required to achieve unattended automated processing.

2. The spindle can replace the direct clamp of the robot, making it easier to load.

3. The first spindle is directly connected to the second spindle to load and unload, and there is no need to use a complex workpiece flip mechanism, which is efficient and reliable.

4. Reservation of universal automation up and down shaking interface, suitable for multiple automated loading and unloading modes (roller type, joint robot, etc.), and adapt to various specifications of parts

Technical parameters:

project		HVIT450	HVIT550
Processing range	Large swing diameter of workpiece	φ550mm	φ620mm
	Large turning diameter	φ450mm	φ550mm
	Large turning height	550mm	550mm
journey	Channel 1 X1/Z1 stroke	750mm / 550mm	850mm /550mm
	Channel 2 X2 /Z2 stroke	550mm /550mm	650 mm /550 mm
Clip	Hydraulic chuck	12'	18'
Spindle	Spindle speed	30 - 1500 rebates	30 - 1000 rebates
	Spindle end face type	A2-8	A2-11
Feed	Fast movement speed of X-axis	20000mm/min	20000mm/min
	Z-axis fast moving speed	20000mm/min	20000  mm/min
	Feed rate per turn	0.01-500mm/rev	0.01-500mm/rev
Knife Tower	Dota Work Station	Eight workstations	Eight workstations
	Tool size	□32mm/φ50 mm	□32mm/φ50 mm
Motor	Main motor power	15Kw	22Kw
	X1/X2 shaft servo motor	22NM	22NM
	Z1/Z2 axis servo motor	22NM	36NM
other	Machine tool weight	12000KG	15000KG
	Machine tool size	31OO*2700*3000 mm	3500*2800*3000mm
