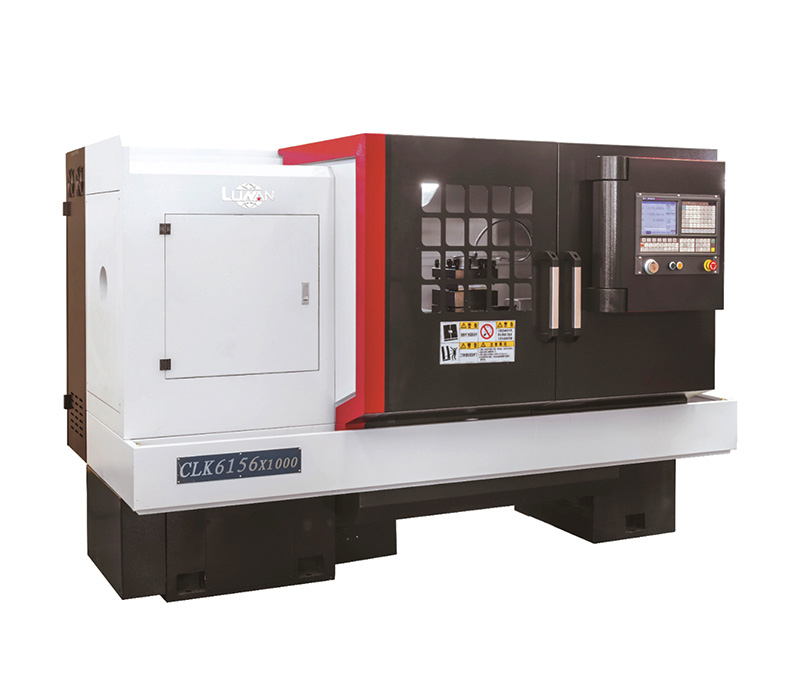

CLK6156
Structural features:
1. The horizontal flat bed casting structure, the base parts are cast with resin sand, and the whole machine has good stability.
2. Ultra-audio quenching of bed guide rails.
3. The joint surface of the bed saddle and the skateboard guide rail are 'plastic' and run smoothly and without crawling.
4. The spindle is a gear speed change mechanism, and adopts a structure supported by high-precision spindle special bearings, which is suitable for heavy-duty processing.
5. The spindle speed speed regulation range is wide and multi-speed stepless speed regulation is adopted.
6. The appearance and protection of the machine tool are novel and unique, waterproof and chip-proof, and easy to maintain.
7. Adopt CNC control system and follow-up control box for easy operation.
| Standard configuration: | Select configuration: |
1. Multi-speed gear (manual shift) speed regulation, stepless speed regulation in the gear; frequency converter motor; 2. Ordinary manual three-claw chuck; 3. Four-station electric tool holder; 4. Manual tailstock; 5. Fixed electronic handwheel; 6. Manual chip removal; 7. Double sliding door semi-protection; 8. GSK980TC3 CNC system. | 1. CNC systems such as FANUC, Siemens, Kanedi, Guangtai, etc.; servo motors; 2. Moving hand pulses; 3. Ordinary four-claw chuck or hydraulic chuck; 4. Six/8 station electric tool holder; 5. Manual follower tool holder and center frame; 6. Hydraulic and pneumatic tail seat; 7. Automatic chip removal; 8. Full protection of double sliding doors. |
Technical parameters:
| project | unit | CLK6156 | CLK6150P | CLK6140D/2 | |
| Work scope | Large slewing diameter of bed | mm | φ570 | φ520 | φ400 |
| Large swing diameter on the sled | mm | φ325 | φ280 | φ170 | |
| Support length between two top tips | mm | 1000/1500 | 1000/1500 | 750/1000 | |
| Large turning length | mm | 785/1285 | 785/1285 | 550/860 | |
| Spindle | Spindle rotation range | r/min | 3rd gear: 40-1600 | 3rd gear: 40-1600 | 2nd gear: 80-2000 |
| Spindle through hole diameter | mm | φ88 | φ88 | φ35 | |
| Bar diameter | mm | φ80 | φ80 | φ51 | |
| Chuck diameter | mm | φ250 | φ250 | φ200 | |
| Spindle end type | A2-8 | A2-8 | A2-6 | ||
| Spindle taper hole taper | mm | Metric 100 (1:20) | Metric 100 (1:20) | MT6 | |
| Spindle motor power | KW | 7.5 | 7.5 | 5.5 | |
| Knife holder | Number of electric tool holders | 把 | 4 (standard configuration) | 4 (standard configuration) | 4 (standard configuration) |
| Cutter size | mm | □32 | □25 | □25 | |
| journey | X-directional itinerary | mm | 310 | 310 | 220 |
| Z-directional itinerary | mm | 785/1285 | 785/1285 | 550/860 | |
| Feed | Fast movement of X-axis | m/min | 6 | 6 | 6 |
| Z-axis moving quickly | m/min | 10 | 10 | 8 | |
| Tail seat | Tail seat sleeve diameter | mm | φ75 | φ75 | φ55 |
| Taper of inner hole of tail seat sleeve | Mo's | MT5 | MT5 | MT4 | |
| Tail seat sleeve stroke | mm | 150 | 150 | 150 | |
| guide | Bed rail width | mm | 420 | 420 | 320 |
| Rail type | Hard track | Hard track | Hard track | ||
| Accuracy | X/Z positioning accuracy | mm | 0.020/0.025 | 0.020/0.025 | 0.020/0.025 |
| X/Z repeat positioning accuracy | mm | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 | |
| other | Net weight of the machine tool | kg | 2350/2560 | 2200/2410 | 1800/1900 |
| Area | mm | 2570/3070*1650 | 2570/3070*1650 | 2000/2320*1100 | |
