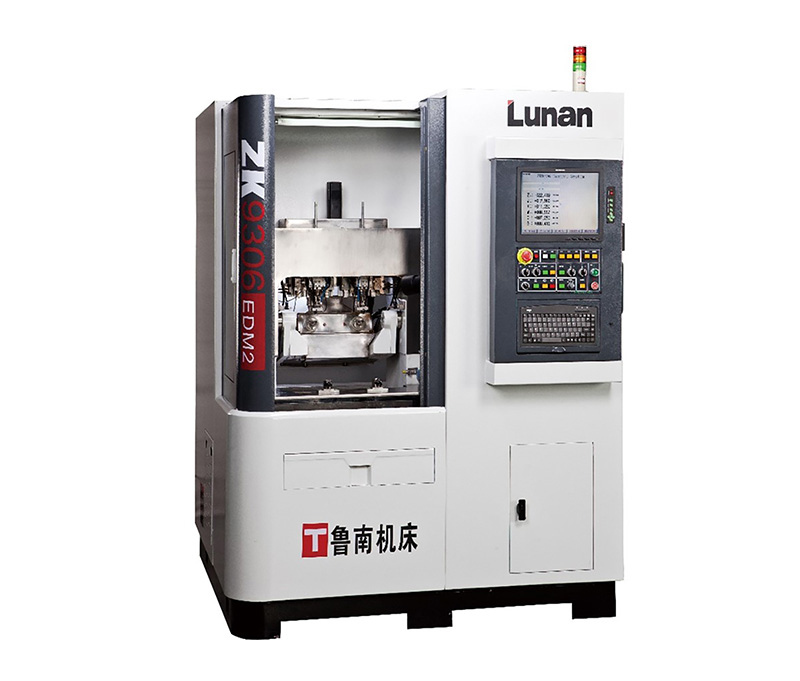

ZK9306-EDM2
Performance Features:
1. Adopt electric spark special CNC system, imported Japanese servo drive, with high positioning accuracy
2. Double-head (multi-head can be customized) E-Spark can be selected at will or can be processed at the same time
3. Double spindle head, high speed rotation, high roundness of processing holes, no burrs
4. The electrode wire automatically rotates, feeds automatically, and compensates automatically
5. Processing hole depth and diameter ratio: 10: 1 Speed: 2-3 holes/min
6. The processed micropores can meet the emission requirements of Euro III standard
Technical parameters:
| project | unit | ZK9306-EDM2 |
| Spindle speed range | r/min | 0-800 |
| Workpiece horizontal indexing range | 度 | 0-360 |
| Vertical indexing range of workpieces | 度 | 0-105 |
| Positioning accuracy | mm | 0.01 |
| Indexing resolution | 度 | 0.01 |
| Grading error | Arc Seconds | ±10 |
| Number of spray holes | 个 | Any |
| Number of parts simultaneously | 件 | 2 |
| Processing pore size range | mm | φ0.1-φ0.5 |
| (＜ 0.1 Holes can be customized) | ||
| Roundness of processing holes | mm | ＜ 0.005 |
| Single hole machining beat | 秒 | 20-40 |
| Machine tool weight | kg | 1100 |
| External dimensions | mm | 1500*1610*2200 |
