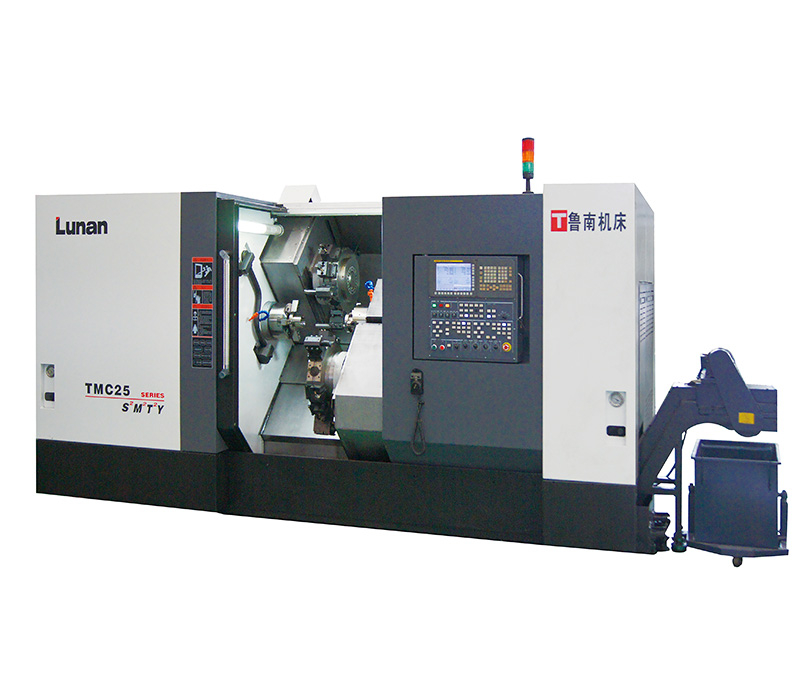

TMC25
Structural features:

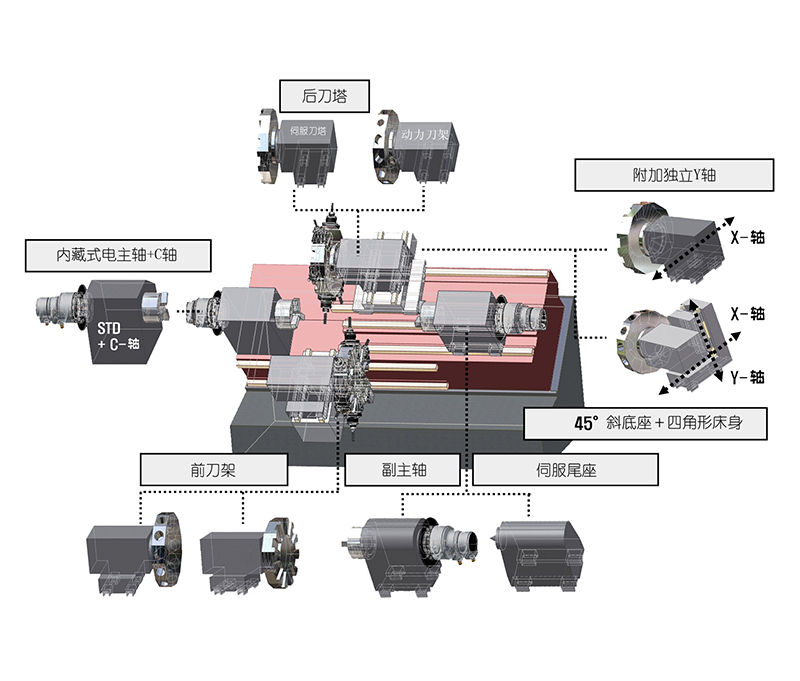

1. Various independent research and development technologies.
2. Adopt a modular design and the product has multiple combinations.
3. The built-in electric spindle has a high-speed, high-precision, and high-rigid structure, excellent performance and easy to maintain.
4. The built-in high-power power turret can be installed at 12 stations.
5. It has four linear feed axes and one C axis, namely X, Y, Z, W, and C axis, and can complete functions such as turning, milling, drilling, boring, tapping, and reaming in one clamping. Among them, the C-axis can be divided by 0.001 degrees, which is more suitable for processing parts of complex shapes such as cams and spiral grooves.
Technical parameters:
| project | unit | TMC25S2M2T2Y | TMC25SMTY | TMC25E | |
| Work scope | Rotating diameter of workpiece on the bed | mm | Ф360/Ф360 | Ф800 | Ф700 |
| (Main spindle/subspindle) | |||||
| Large machining diameter (disc/axle type) | mm | Ф360/Ф360 | Ф360/Ф360 | Ф360 | |
| Large processing length | mm | 750 | 750 | 570 | |
| Spindle | Spindle speed | r/min | 30-4000 | 30-4000 | 30-4000 |
| Spindle power | KW | 15/22 Electric spindle | 15/22 Electric spindle | 15/22 Electric spindle | |
| Hydraulic chuck | 寸 | 10 | 10 | 10 | |
| Knife Tower | Number of trunk positions | 把 | 12 | 12 | 12 |
| Dot motor power | KW | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | |
| Power handle specifications | BMT65 | BMT65 | BMT65 | ||
| Power tool speed | r/min | 30-4000 | 30-4000 | 30-4000 | |
| journey | X-axis (X1/X2) stroke | mm | 245/210 | 245 | 245 |
| Z-axis (Z1/Z2) stroke | mm | 800/800 | 800 | 580 | |
| Y-axis stroke | mm | ±50 | ±50 | - | |
| W axis (tail seat or sub-spindle) stroke | mm | 780 | 780 | 550 | |
| Feed | X-axis (X1/X2) fast movement | m/min | 30/30 | 30 | 30 |
| Z-axis (Z1/Z2) moves quickly | m/min | 30/30 | 30 | 30 | |
| Y-axis moves quickly | m/min | 10 | 10 | - | |
| W axis moves quickly | m/min | 15 | 15 | - | |
| Tail seat | Tail seat feed method | Servo drive | Servo drive | Hydraulic | |
| guide | Guide rail form | All lines | All lines | All lines | |
| Accuracy | Positioning accuracy | mm | 0.016 | 0.016 | 0.016 |
| Repeat positioning accuracy | mm | 0.008 | 0.008 | 0.008 | |
| other | Net weight of the machine tool | kg | 11000 | 9000 | 7000 |
| Dimensions (length*width*height) | mm | 4050*2400*2400 | 4050*2200*2400 | 3500*2000*1950 | |
