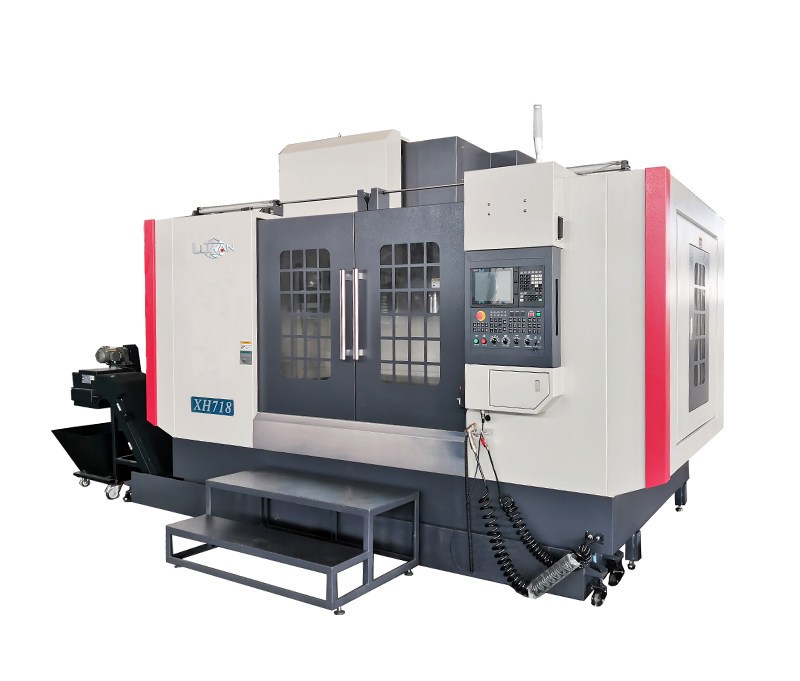

XH718
| 1. Standard configuration | 2. Select configuration |
| ~!phoenix_var2_0!~ ~!phoenix_var2_1!~ ~!phoenix_var2_2!~ ~!phoenix_var2_3!~ ~!phoenix_var2_4!~ ~!phoenix_var2_5!~ | 1. CNC system: Kanedi, Huazhong, SIEMENS, Mitsubishi or others; 2. Handheld air gun; 3. Fourth axis; 4. Taiwan central water outlet spindle unit; 5. Automatic chip discharger; 6. Tool setter. |
Technical parameters:
| project | unit | XH718 | XHS718A2 | XHS718A | |
| Work scope | X-directional itinerary | mm | 1500 | 1500 | 1500 |
| Y-direction itinerary | mm | 800 | 800 | 800 | |
| Z direction itinerary | mm | 700 | 700 | 700 | |
| Distance from the spindle end surface to the workbench | mm | 170-870 | 180-880 | 180-880 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 800 | 915 | 951 | |
| Workbench | Workbench area | mm | 1700*800 | 1700*800 | 1700*800 |
| T-slot size | mm | 5-22-135 | 5-22-150 | 5-22-150 | |
| Large load bearing of workbench | kg | 1500 | 1500 | 1500 | |
| Spindle | Spindle speed | r/min | 50-6000 | 50-6000 | 50-6000 |
| Spindle conical hole | BT50 | BT50 | BT50 | ||
| Spindle motor power | KW | 15/18.5 | 15/18.5 | 15/18.5 | |
| Feed | X/Y axis moves quickly | m/min | 15 | 24 | 24 |
| Z-axis moves quickly | m/min | 12 | 18 | 18 | |
| Cutting feed | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| guide | Rail type | Three-axis hard rail | X/Y wire gauge, Z hard rail | Three-axis rail | |
| Accuracy | X/Y/Z Positioning Accuracy | mm | 0.020/0.016/0.016 | 0.020/0.016/0.016 | 0.020/0.016/0.016 |
| X/Y/Z Repeat positioning accuracy | mm | 0.012/0.008/0.008 | 0.012/0.008/0.008 | 0.012/0.008/0.008 | |
| Tool library | Tool magazine capacity (standard) | 把 | 24 | 24 | 24 |
| Large diameter of tool (next/empty) | mm | φ127/φ200 | φ127/φ200 | φ127/φ200 | |
| Large length of tool | mm | 300 | 300 | 300 | |
| High weight of tool | kg | 15 | 15 | 15 | |
| other | Net weight of the machine tool | kg | 15000 | 15000 | 14500 |
| External dimensions | mm | 4100*3570*3055 | 4100*3570*3055 | 4100*3570*3055 | |
