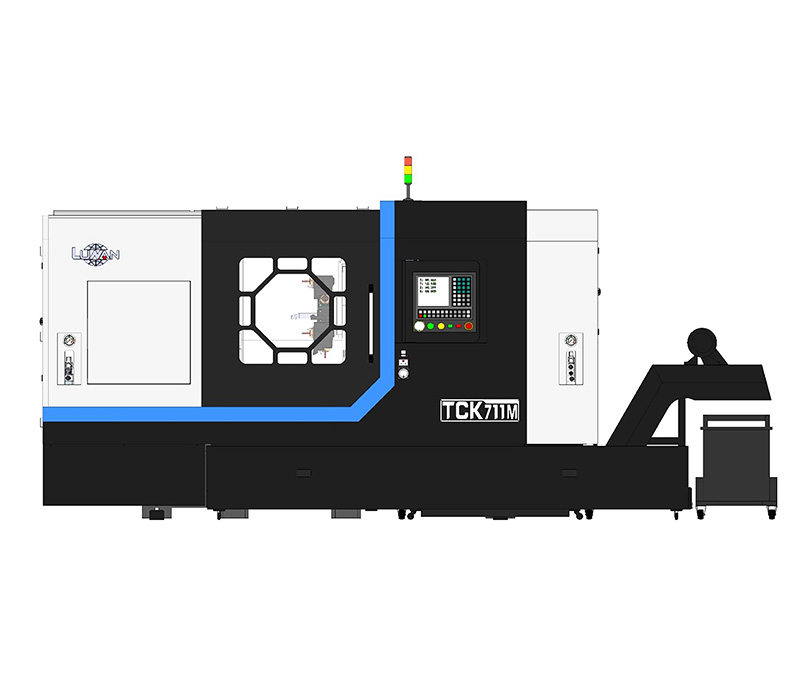

TCK711
Structural features:
1. Fully-functional inclined bed CNC lathe, with two basic linear axes X and Z, optional Y axis and high-precision C axis.
2. The tailstock can be driven hydraulically to achieve long-stroke integrated movement.
3. The 30° inclined bed and base are integrated design to maintain good and long-term high rigidity and stability.
4. Both the X and Z axes use linear roller guides with high precision, high load capacity and high reliability.
5. The Y-axis adopts a highly rigid rectangular guide rail, and the sliding contact surface is applied to plastic.
6. High-speed, high-precision, and high-rigid elastic shell spindle unit.
7. Adopt a modular design and the product has multiple combinations.
8. Especially suitable for high-speed, high-precision turning and milling composite processing of medium and large discs and shaft parts.
| Standard configuration: | Select configuration: |

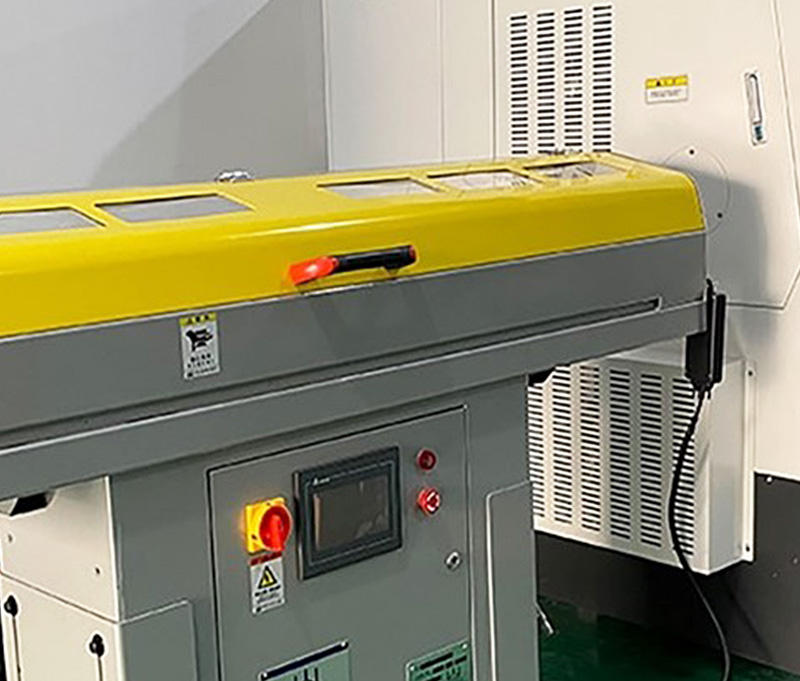

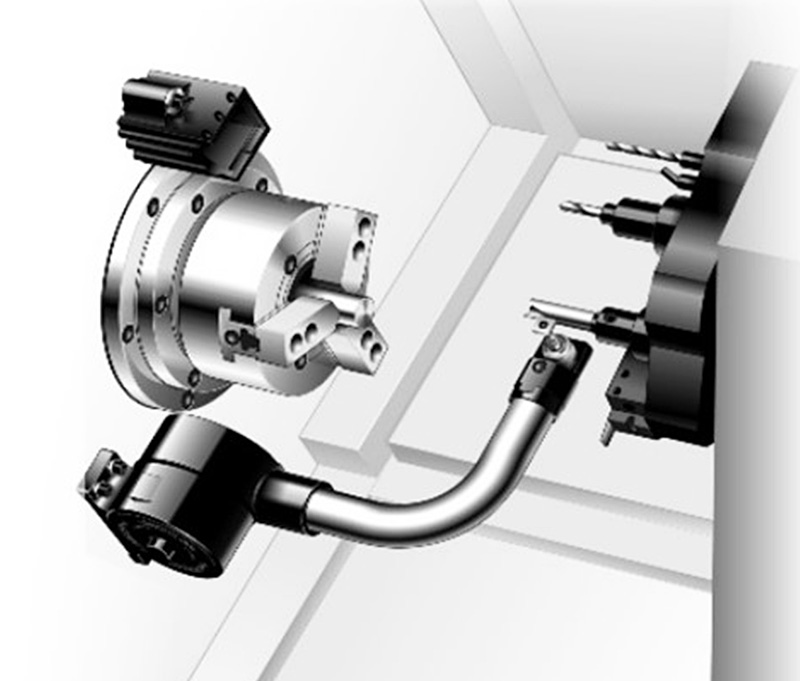

| 1.10-inch three-claw hydraulic chuck (including soft claws) and rotary cylinder; 2. The rated power of the servo spindle motor is 15KW; 3. The spindle high speed is 4000 r/min; 4.12-station servo turret/power turret/Y-axis power turret; 5. Rigid tapping; 6. External cooling system (including chip tray, cooling box, cooling pump); 7. Manual chip discharge; 8. Full protection sheet metal outer shield and internal screw and rail shield; 9. CNC system: GSK988T. | 1. CNC system: new generation, Kanedi, FANUC, Siemens or others; 2. Automatic chip removal; 3. Hydraulic center frame; 4. Servo tailstock; 5. Sub-spindle; 6. Elastic chuck and chuck; 7. Knife fitting instrument and bar feeder. |
Technical parameters:
| project | unit | TCK711MY | TCK711M | TCK711 | |
| Work scope | Large diameter of workpiece rotation of bed | mm | Ф700 | ||
| Large machining diameter (but drag plate/pass drag plate) | mm | Ф550/Ф380 | |||
| The spindle is equipped with a large distance from the top of the tailstock with the end face (excluding the claws). | mm | 1160 | |||
| Effective machining length | mm | 1100 | |||
| Spindle | Spindle end specifications | A2-8 | |||
| Spindle inner cone | Metric Ф100 (1:20) | ||||
| Standard chuck specifications for spindles | 寸 | Hydraulic 10' | |||
| Bar diameter (hydraulic chuck) | mm | Ф74 | |||
| Spindle speed | r/min | 30-4000 | |||
| Spindle power | KW | 15 | |||

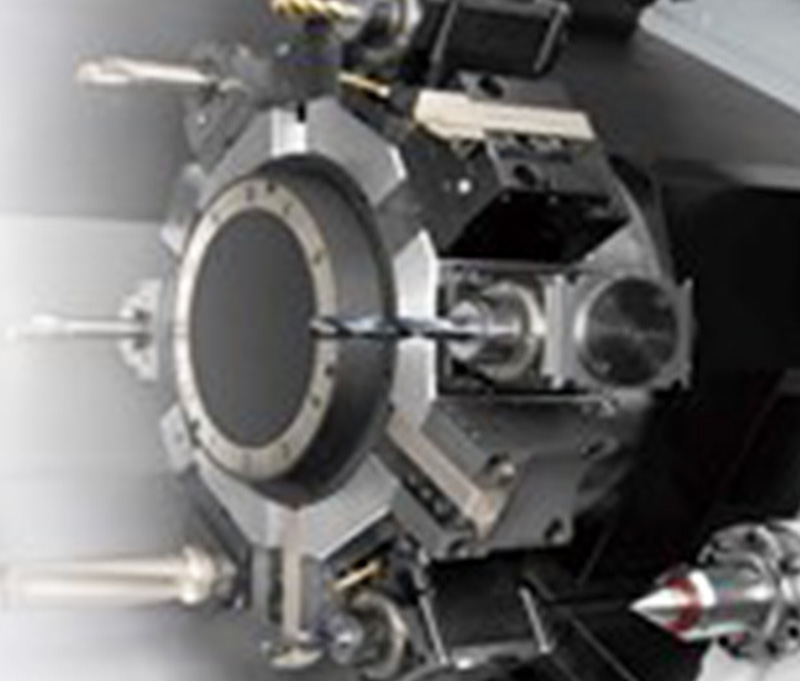

| Knife Tower | Dot Tower Type | Horizontal | |||
| Number of trunk positions | 把 | 12 | |||
| Square handle tool size | mm | □25 | |||
| Round handle tool size | mm | Ф40 | |||
| Power tool holder specifications (optional) | BMT55/BMT65 | / | |||
| Power tool speed | r/min | 50-3000 | / | ||
| journey | X-axis stroke | mm | 250 | ||
| Z-axis stroke | mm | 1200 | |||
| Y-axis stroke | mm | ±45 | / | ||
| Feed | X/Z axis fast shift speed | m/min | 24/24 | ||
| Y-axis fast shift speed | m/min | 10 | / | ||
| Bed body | Incline angle | 度 | 30° | ||
| Guide rail form | Y-axis: hard rail | All roller rails | |||
| Remain: Line rails | |||||
| Single rail width X/Z/W axis (tail seat) | mm | 45/45/45 | |||
| Y-axis guide width/span | mm | 46/320 | / | ||
| Wire screw | X-axis screw | mm | Ф32*8 | ||
| Z-axis screw | mm | Ф40*12 | |||
| Y-axis screw | mm | Ф32*5 | |||
| Tail seat | Tail seat feed method | Integrated hydraulic drive | |||
| Tail seat inner cone | MT | MT5 | |||
| Tail seat stroke | mm | 850 | |||

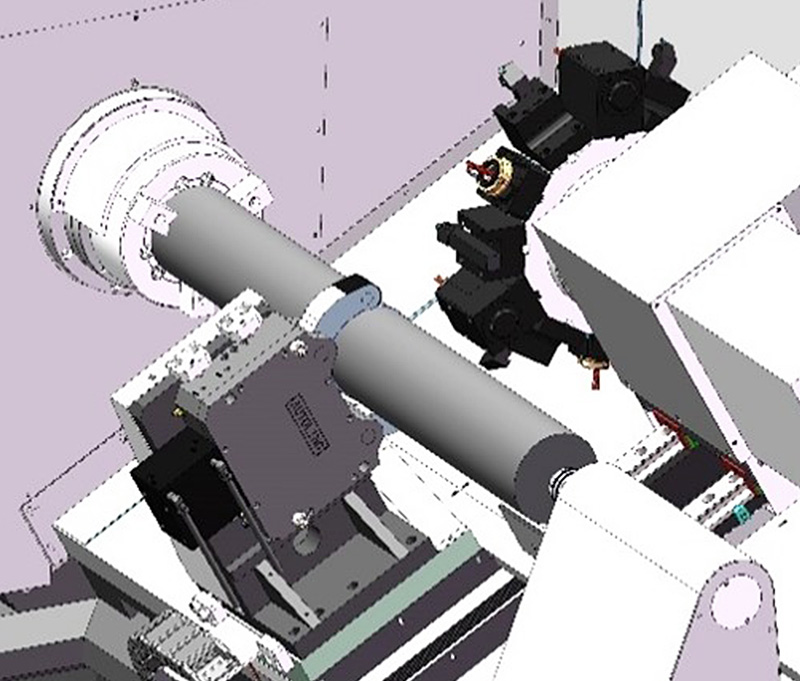

| Center frame | Clamping range | mm | φ12-φ152 | ||
| The clamping center point is located from the spindle standard chuck end surface | mm | 220-820 (anywhere within the range, hydraulic jog) | |||
| Accuracy | Positioning accuracy | mm | ±0.008 | ||
| Repeat positioning accuracy | mm | ±0.004 | |||
| other | Net weight of the machine tool | kg | 6000 | 5800 | 5800 |
| Dimensions: left and right * front and back * top and bottom | mm | 3800*2000*2200 (excluding chip remover) | |||
