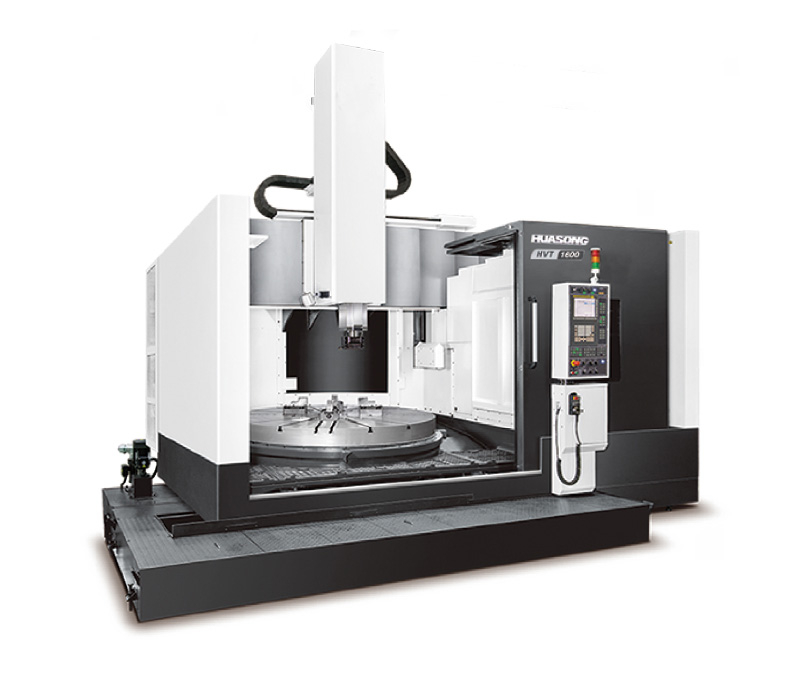

HVT1200 CNC vertical lathe

Mechanical characteristics:

1. Square sliding pillow structure, good cutting rigidity;

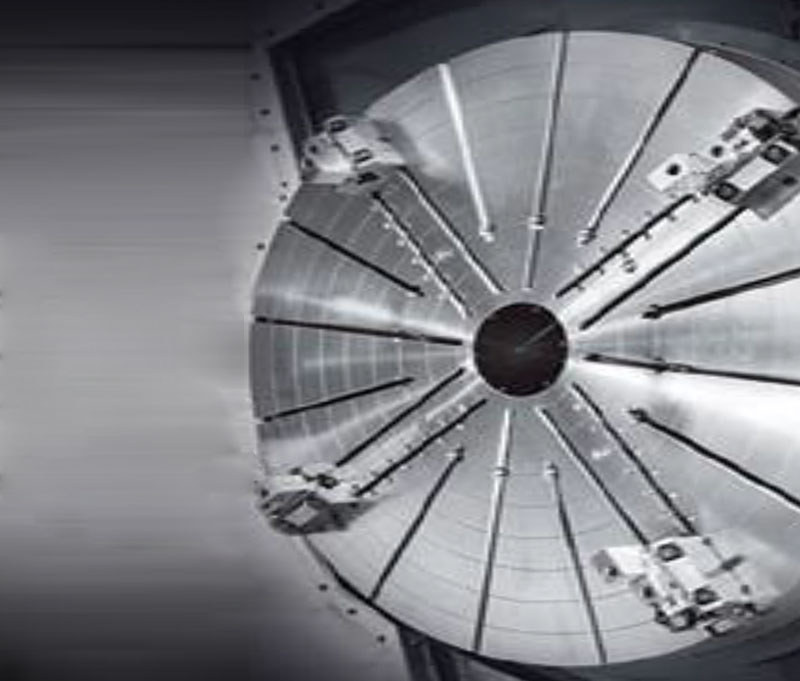

2. The spindle is supported by large cross roller bearings, which is highly accurate and suitable for heavy-duty processing;

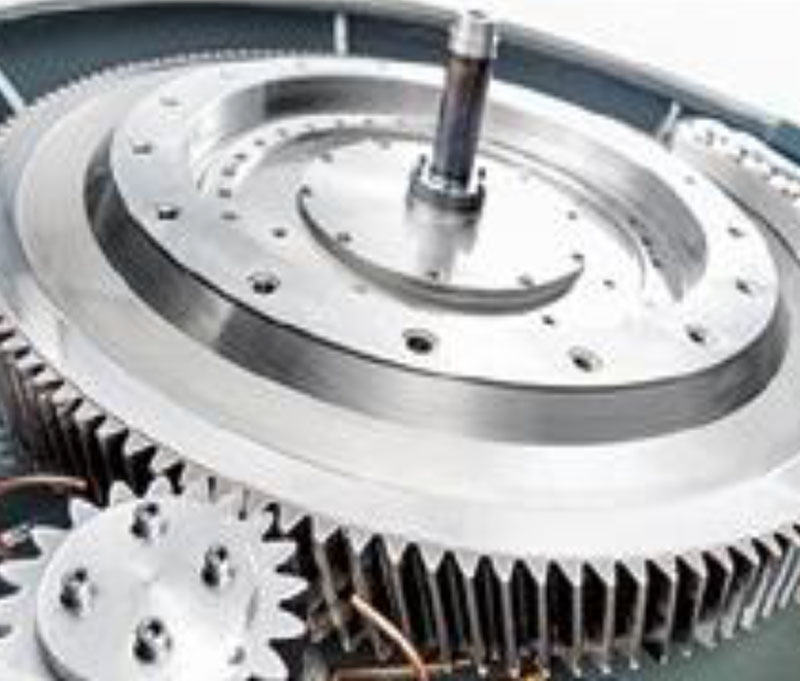

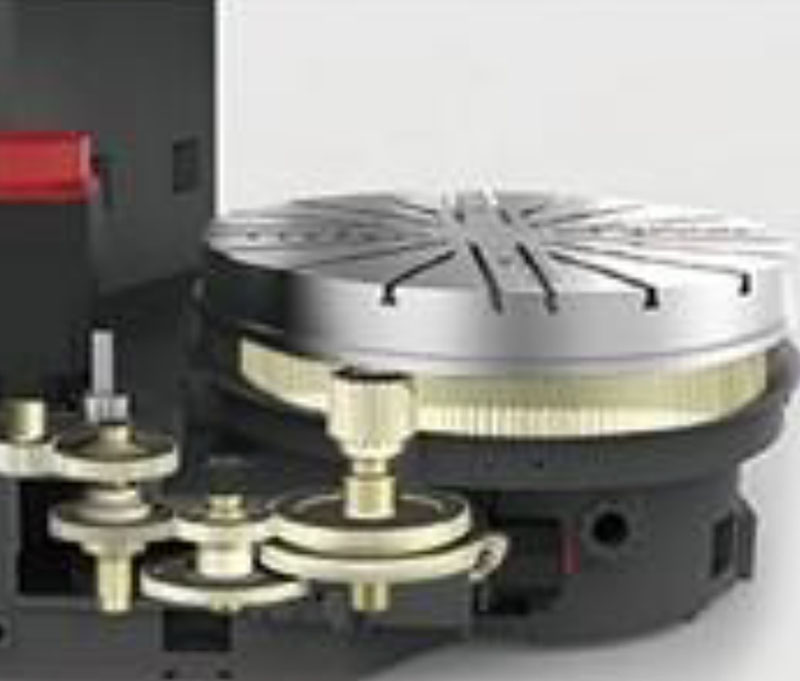

3. The main transmission adopts multi-stage gear transmission to achieve low-speed and high-torque machining.

Select configuration:
1. High and low pressure switching of oil pressure chuck 2. Confirmation device for clamping and placement of chuck 3. Two-stage spindle transmission	4. Hydraulic chuck hard claws 5. Automatic door 6. Electrical box air conditioning	7. Oil mist collector 8. Spindle load monitoring system 9. Special tool holder fixture

Technical parameters:

	Specification	unit	HVT1200	HVT1600
Mechanical specifications	Large slewing diameter	mm	1400	1800
	Large slewing diameter on skateboard	mm	1000	1400
	Large cutting diameter	mm	1200	1600
	Large cutting height	mm	850	850
Spindle	Spindle nose specifications
	Spindle bearing diameter	mm	330	457
	Hydraulic chuck specifications	'	1200	32
	Spindle speed	r/m1n	350	350
	Large spindle torque	Nm	12000	12000
Knife Tower	Force tower form		Square sliding pillow	Square sliding pillow
	Number of tool positions		12	12
	Tool size	mm	BT50	BT50
Feed	X-axis stroke	mm	850	1250
	Z-axis stroke	mm	850	850
	Y-axis stroke	mm
	X-axis fast feed speed	m/min	15	15
	Z-axis fast feed speed	m/min	12	12
	Y-axis fast feed speed	m/min
	Cutting feed speed	mm/min	0-5000	0-5000
Motor	Spindle motor	Kw	22/30	22/30
	Powered spindle motor	Kw
	Hydraulic system motor	Kw	22	22
	Cooling pump motor	Kw	0 75	0 75
General	Capacitance used	KVA	70	70
	Machine tool area	mm	4000*5200	4500*5500
	Machine tool height	mm	4500	4500
	The weight of the whole machine	kg	20000	25000
