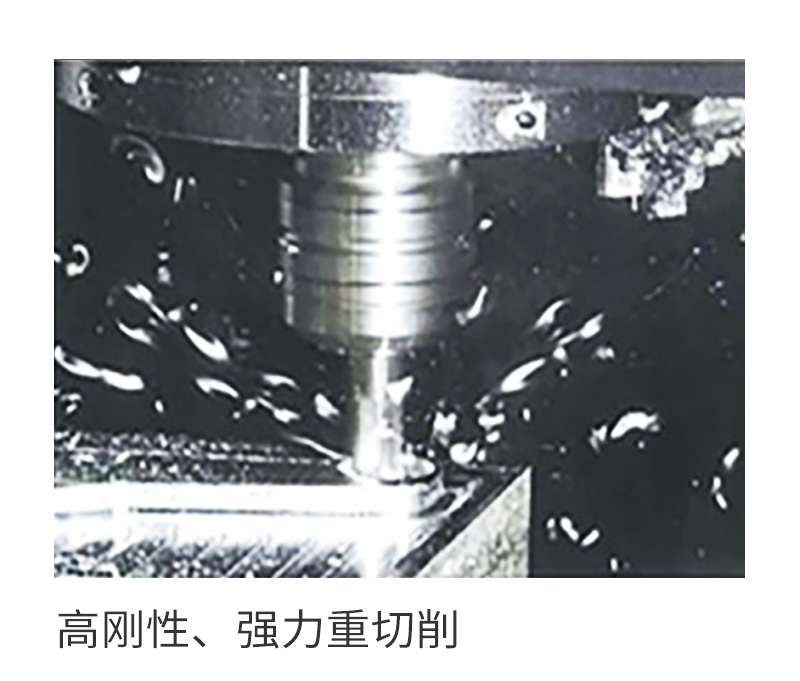

XH716CL
| 1. Standard configuration | 2. Select configuration |

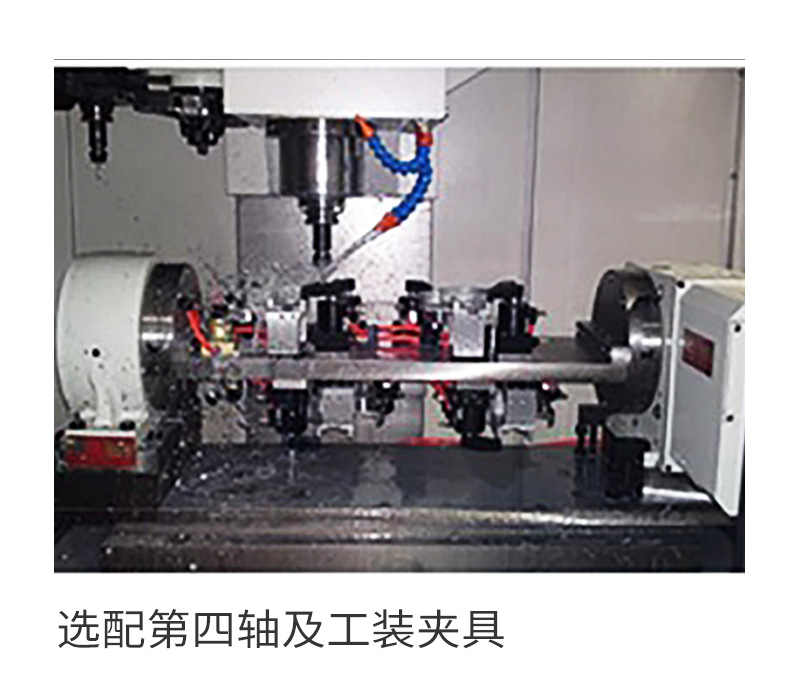

| 1. Taiwan BT40 spindle unit 8000rpm; 2. servo spindle motor power 7.5KW; 3.24 disc servo tool magazine; 4. External cooling system (including chip tray, cooling box, cooling pump, air cooling); 5. Taiwan lead screw; 6. CNC system KND2000M. | 1. Taiwan BT50 spindle unit; 2. Servo spindle motor power 11KW; 3. 16 hat-type tool magazine; 4. Center water outlet, ring spray, high-speed spindle unit; 5. Oil cooler; 6. Automatic chip discharge; 7. Fourth axis |
Technical parameters:
| project | unit | XH716CLH | XH716CL | XH716C | |
| Work scope | X-directional itinerary | mm | 1200 | 1200 | 1000 |
| Y-direction itinerary | mm | 600 | 600 | 600 | |
| Z direction itinerary | mm | 700 | 700 | 700 | |
| Distance from the spindle end surface to the workbench | mm | 100-800 | 150-850 | 150-850 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 650 | 650 | 650 | |
| Workbench | Workbench area | mm | 1300*600 | 1300*600 | 1300*600 |
| T-slot size | mm | 5-18-120 | 5-18-120 | 5-18-120 | |
| Large load bearing of workbench | kg | 800 | 800 | 800 | |
| Spindle | Spindle speed | r/min | 60-3500 | 60-8000 | 60-8000 |
| Spindle conical hole | BT50-190 | BT40-150 | BT40-150 | ||
| Spindle motor power | KW | 11/15 | 11/15 | 11/15 | |
| Feed | X/Y axis moves quickly | m/min | 15 | 15 | 15 |
| Z-axis moves quickly | m/min | 12 | 12 | 12 | |
| Cutting feed | mm/min | 1-5000 | 1-5000 | 1-5000 | |

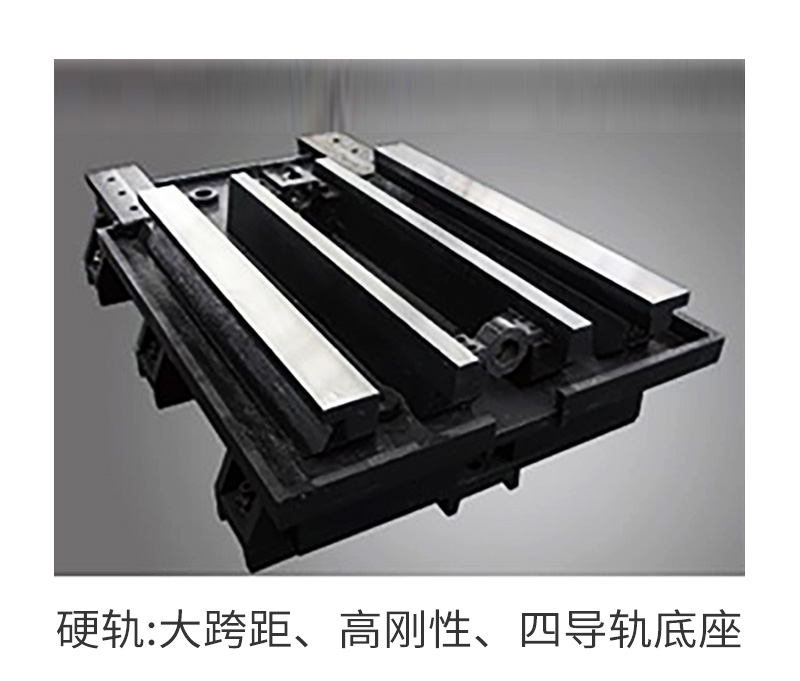

| guide | Rail type | Three-axis hard rail, Y-four rail | Three-axis hard rail, Y-four rail | Three-axis hard rail, Y-four rail | |
| Accuracy | X/Y/Z Positioning Accuracy | mm | 0.022/0.016/0.016 | 0.022/0.016/0.016 | 0.022/0.016/0.016 |
| X/Y/Z Repeat positioning accuracy | mm | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | |
| Tool library | Tool magazine capacity | 把 | 24 | 24 | 24 |
| Large diameter of tool (next/empty) | mm | φ127/φ200 | φ80/φ125 | φ80/φ125 | |
| Large length of tool | mm | 300 | 300 | 300 | |
| High weight of tool | kg | 15 | 10 | 10 | |
| other | Net weight of the machine tool | kg | 6900 | 6800 | 6700 |
| External dimensions | mm | 3340*2300*3100 | 3340*2310*3100 | 3340*2310*3100 | |

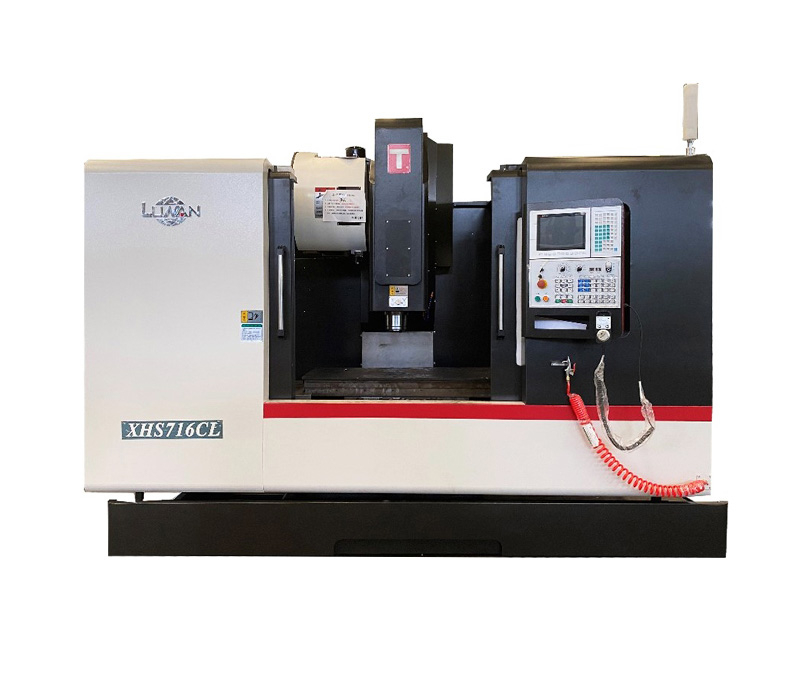

| project | unit | XHS716CL | XHS716C | XHS716CL2 | XHS716C2 | |
| Work scope | X-directional itinerary | mm | 1200 | 1000 | 1200 | 1000 |
| Y-direction itinerary | mm | 600 | 600 | 600 | 600 | |
| Z direction itinerary | mm | 700 | 700 | 700 | 700 | |
| Distance from the spindle end surface to the workbench | mm | 150-850 | 150-850 | 150-850 | 150-850 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 682 | 682 | 650 | 650 | |
| Workbench | Workbench area | mm | 1300*600 | 1300*600 | 1300*600 | 1300*600 |
| T-slot size | mm | 5-18-120 | 5-18-120 | 5-18-120 | 5-18-120 | |
| Large load bearing of workbench | kg | 800 | 800 | 800 | 800 | |
| Spindle | Spindle speed | r/min | 60-8000 | 60-8000 | 60-8000 | 60-8000 |
| Spindle conical hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 | ||
| Spindle motor power | KW | 11/15 | 11/15 | 11/15 | 11/15 | |
| Feed | X/Y axis moves quickly | m/min | 15 | 15 | 15 | 15 |
| Z-axis moves quickly | m/min | 12 | 12 | 12 | 12 | |
| Cutting feed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 | |

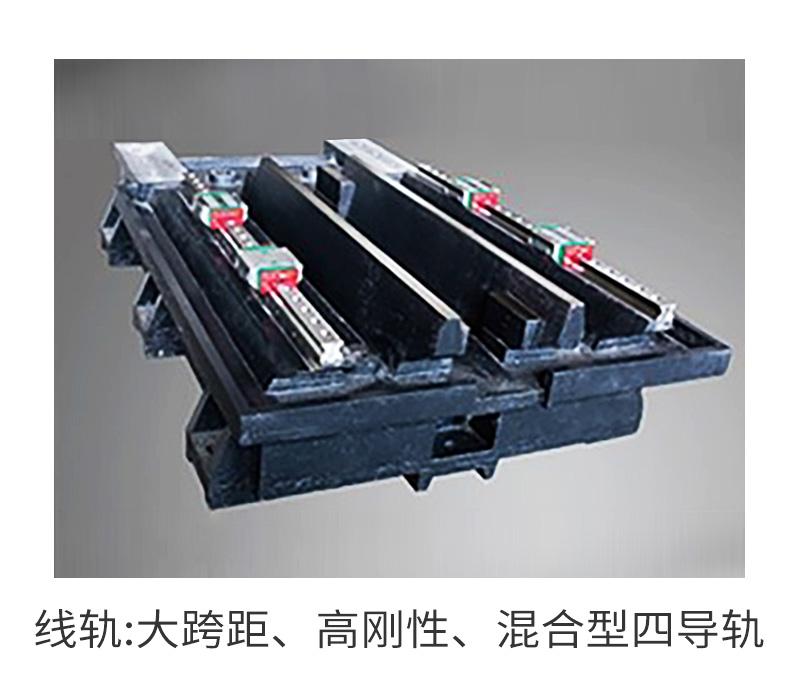

| guide | Rail type | Three-axis rail | Three-axis rail | Two lines and one hard | Two lines and one hard | |
| Accuracy | X/Y/Z Positioning Accuracy | mm | 0.022/0.016/0.016 | |||
| X/Y/Z Repeat positioning accuracy | mm | 0.015/0.012/0.012 | ||||
| Tool library | Tool magazine capacity | 把 | 24 | 24 | 24 | 24 |
| Large diameter of tool (next/empty) | mm | φ80/φ125 | φ80/φ125 | φ80/φ125 | φ80/φ125 | |
| Large length of tool | mm | 300 | 300 | 300 | 300 | |
| High weight of tool | kg | 10 | 10 | 10 | 10 | |
| other | Net weight of the machine tool | kg | 6700 | 6600 | 6700 | 6600 |
| External dimensions | mm | 3340*2300*3100 | 3340*2310 | 3340*2310*3100 | 3340*2310*3100 | |
