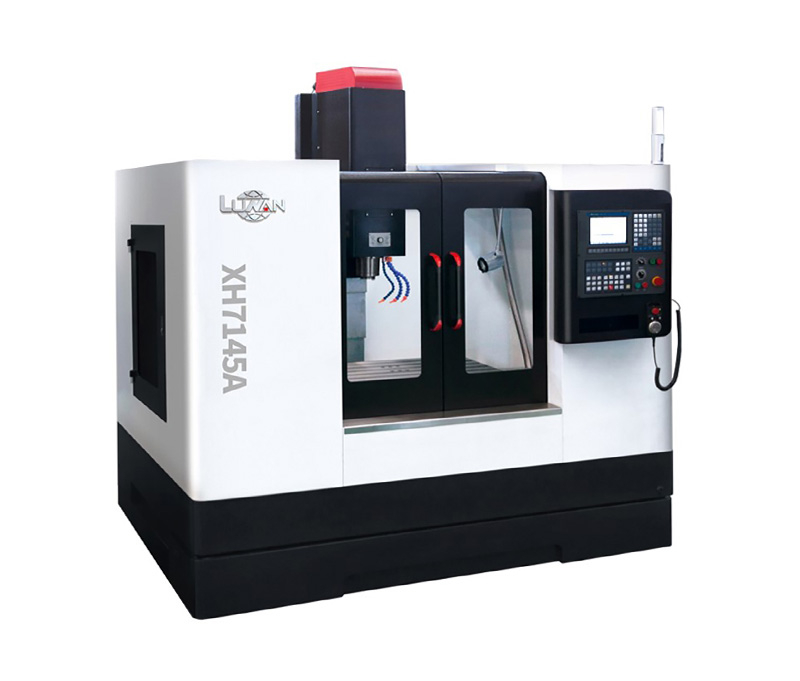

XH7145A Vertical Machining Center

Product Description

1. Standard configuration	2. Select configuration
1. Taiwan spindle unit 80-8000rpm; 2. Servo spindle motor: power 5.5KW (26N.M); 3. Taiwan 24 disc tool magazine; 4. Moving hand pulse; 5. Concentrated automatic oil lubrication; 6. External cooling system (including cooling pipes, chip connectors, cooling box, cooling pump); 7. CNC system: KND-2000M;	1. CNC system: FANUC, Central China, SIEMENS, Mitsubishi or others; 2. Fourth axis; 3. 16 tool magazine of the hat; 4. Taiwan central water outlet spindle unit; 5. Automatic chip discharger; 6. Tool setter.

Technical parameters:

project		unit	XHS7145	XH7145A	XH7132A
Work scope	X-directional itinerary	mm	700	700	500
	Y-direction itinerary	mm	450	450	320
	Z direction itinerary	mm	500	550	400
	Distance from the spindle end surface to the workbench	mm	130-630	120-670	80-480
	Distance from the center of the spindle to the column guide rail surface	mm	485	460	360
Workbench	Workbench area	mm	1000*450	1000*450	800*320
	T-slot size	mm	5-18-80	5-18-80	3-14-100
	Large load bearing of workbench	kg	600	600	350
Spindle	Spindle speed	r/min	60-8000	60-8000	60-8000
	Spindle conical hole		BT40	BT40	BT30
	Spindle motor power	KW	5.5	5.5	5.5
Feed	X/Y axis moves quickly	m/min	24	12	24
	Z-axis moves quickly	m/min	18	10	18
	Cutting feed	mm/min	1-5000	1-5000	1-5000
guide	Rail type		Three-axis rail	Three-axis hard rail	Three-axis rail
Accuracy	X/Y/Z Positioning Accuracy	mm	0.012/0.010/0.01	0.016/0.012/0.012	0.008/0.008/0.008
Accuracy	X/Y/Z Repeat positioning accuracy	mm	0.008/0.006/0.006	0.010/0.008/0.008	0.005/0.005/0.005
Tool library	Tool magazine capacity	把	24	24	20
	Large diameter of tool (next/empty)	mm	φ80/φ125	φ80/φ125	φ60/φ120
	Large length of tool	mm	300	300	200
	High weight of tool	kg	10	10	5
other	Net weight of the machine tool	kg	4200	4200	3000
other	External dimensions	mm	240020002500	240021002500	160018402110
