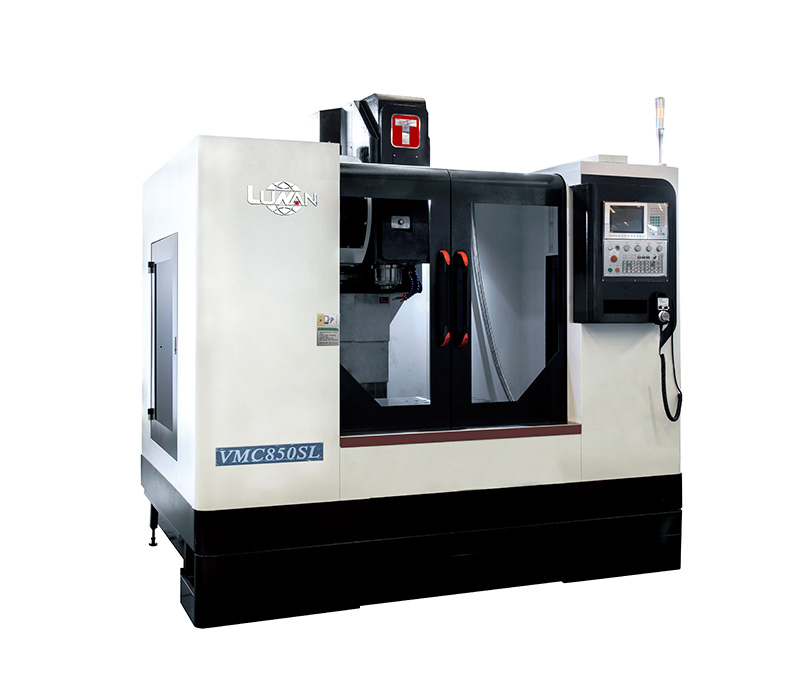

VMC850SL
| 1. Standard configuration | 2. Select configuration |
| 1. Taiwan high-speed spindle unit 8000rpm; 2. Servo spindle motor: motor power 7.5KW (36N.M); 3. Taiwan 16 hats knife magazine; 4. Centralized automatic oil lubrication; 5. External cooling system (including cooling pipes, chip trays, cooling boxes, cooling pumps); 6. Full protection sheet metal outer shield and internal lead screws and rail shields; 7. CNC system: FANUC 0i MF5; | 1. CNC system: Kanedi, Huazhong, SIEMENS, Mitsubishi or others; 2. Handheld air gun; 3. Fourth axis; 4. Disc 24 tool magazine; 5. Taiwan Central Water Extraction Spindle Unit; 6. Automatic chip ejector; 7. Tool setter. |
Technical parameters:

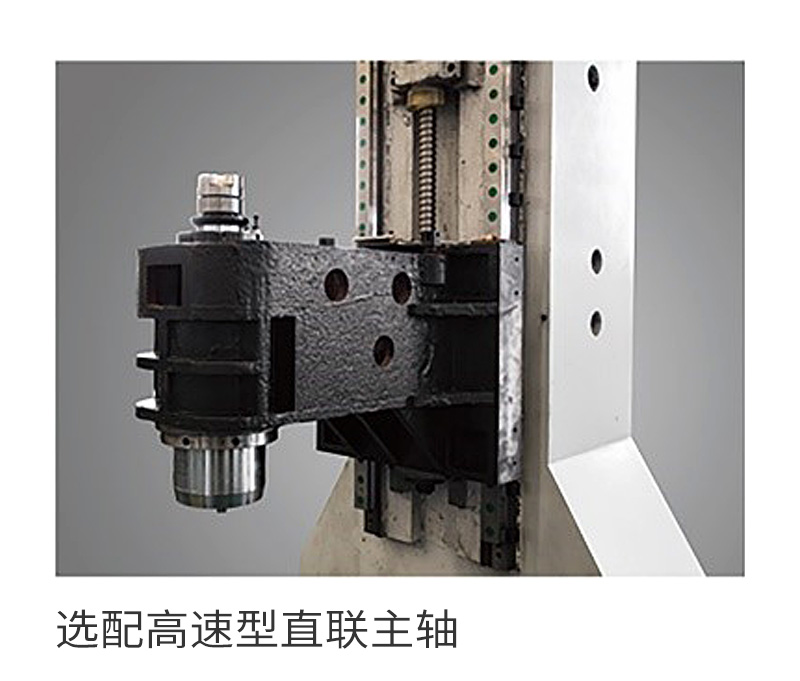

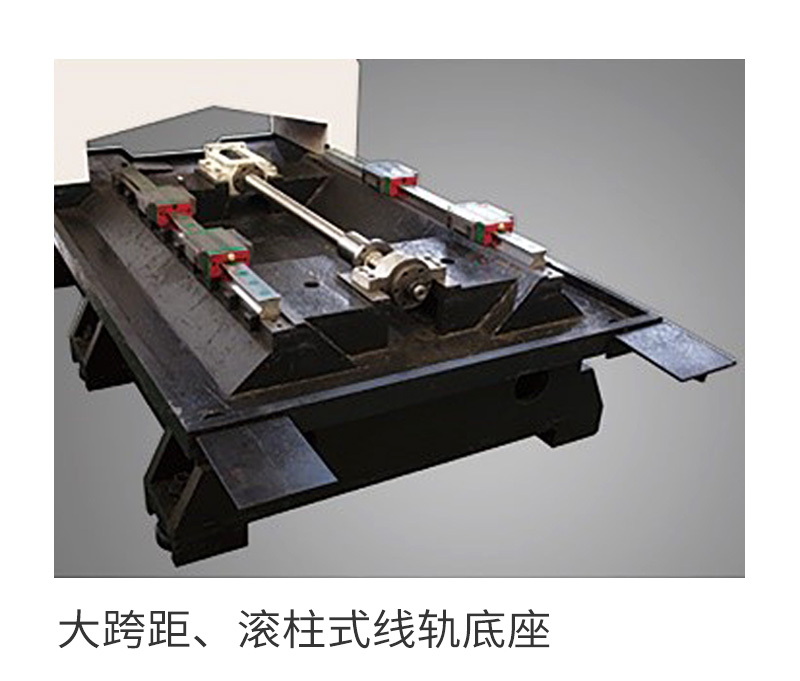

| project | unit | VMC850SLD | VMC850SL | VMC850SL2 | VMC850L | |
| Work scope | X-directional itinerary | mm | 800 | 800 | 800 | 800 |
| Y-direction itinerary | mm | 500 | 500 | 500 | 500 | |
| Z-directional itinerary | mm | 600 | 600 | 600 | 600 | |
| Distance from the spindle end surface to the workbench | mm | 170-770 | 170-770 | 170-770 | 170-770 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 580 | 580 | 548 | 548 | |
| Workbench | Workbench area | mm | 1100*500 | 1100*500 | 1100*500 | 1100*500 |
| T-slot size | mm | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | |
| Large load bearing of workbench | kg | 600 | 600 | 600 | 600 | |
| Spindle | Spindle speed | r/min | 60-12000 | 60-8000 | 60-8000 | 60-8000 |
| Spindle conical hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 | ||
| Spindle motor power | KW | 7.5 | 7.5 | 7.5 | 7.5 | |
| Feed | X/Y axis moves quickly | m/min | 32 | 32 | 32 | 16 |
| Z-axis moving quickly | m/min | 24 | 24 | 16 | 16 | |
| Cutting feed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 | |
| guide | Rail type | Three-axis rail | Three-axis rail | Two lines and one hard | Three hard | |
| Accuracy | X/Y/Z positioning accuracy | mm | 0.022/0.016/0.016 | |||
| X/Y/Z repeat positioning accuracy | mm | 0.015/0.012/0.012 | ||||
| Tool library | Tool magazine capacity | 把 | 24 | 24 | 24 | 24 |
| Large diameter of tool (next/empty) | mm | Φ80/Φ125 | Φ80/Φ125 | Φ80/Φ125 | Φ80/Φ125 | |
| Large length of tool | mm | 300 | 300 | 300 | 300 | |
| High weight of tool | kg | 10 | 10 | 10 | 10 | |
| other | Net weight of the machine tool | kg | 5800 | 5700 | 5700 | 5800 |
| External dimensions | mm | 2700*2300*2500 | 2700*2300*2500 | 2700*2300*2500 | 2700*2300*2500 | |
