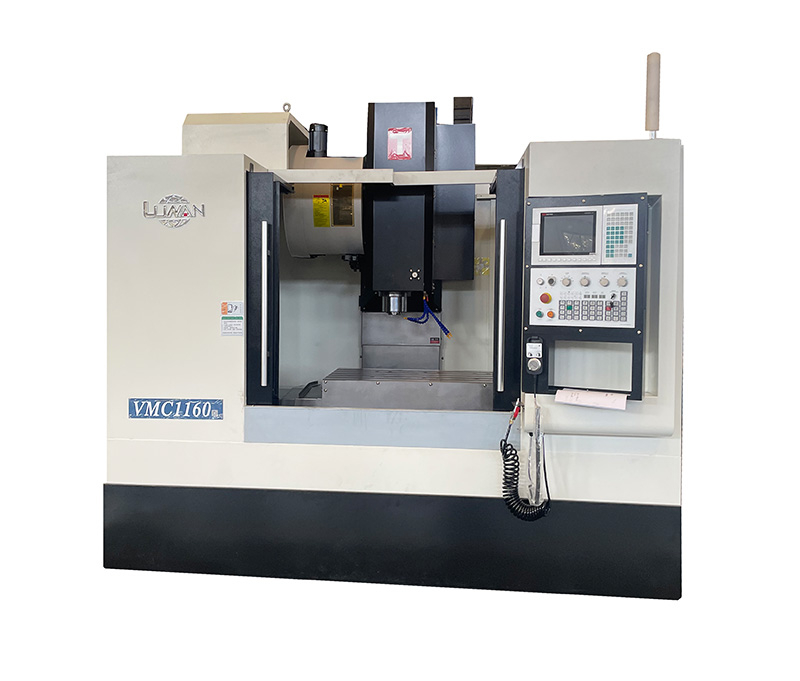

VMC1160 Vertical Machining Center

Product Description

Machine tool configuration:

1. CNC system: KND2000M (optional CNC system with other brands);

2. Taiwan spindle unit BT40-150-8000rpm;

3. Servo spindle motor: motor power 11KW (70N.M);

4. Taiwan (Okada) BT40-24 disc tool magazine;

5. X/Y/Z three-axis three-wire roller guide rail (45/45/45);

6. Concentrated automatic oil lubrication;

7. External cooling system (including cooling pipes, chip connectors, cooling boxes, cooling pumps);

8. Manual rear chip removal.

Technical parameters:

project		unit	VMC1160	VMC855	XHC715
Work scope	X-directional itinerary	mm	1100	800	1000
	Y-direction itinerary	mm	600	550	500
	Z direction itinerary	mm	600	550	500
	Distance from the spindle end surface to the workbench	mm	120-720	130-680	140-720
	Distance from the center of the spindle to the column guide rail surface	mm	710	655	545
Workbench	Workbench area	mm	1200*600	1000*550	1600*500
	T-slot size	mm	5-18-100	5-18-90	5-18-80
	Large load bearing of workbench	kg	800	500	750
Spindle	Spindle speed	r/min	60-8000	60-8000	80-3500
	Spindle conical hole		BT40	BT40	BT50-190
	Spindle motor power	KW	11	7.5	11
Feed	X/Y axis moves quickly	m/min	32	32	10
	Z-axis moves quickly	m/min	24	24	8
	Cutting feed	mm/min	1-5000	1-5000	1-5000
guide	Rail type		Three-axis rail	Three-axis rail	Three-axis hard rail, Y-four rail
Accuracy	X/Y/Z Positioning Accuracy	mm	0.016/0.012/0.012	0.016/0.012/0.012	0.025/0.016/0.016
Accuracy	X/Y/Z Repeat positioning accuracy	mm	0.010/0.006/0.006	0.010/0.006/0.006	0.015/0.012/0.012
Tool library	Tool magazine capacity	把	24	24	24
	Large diameter of tool (next/empty)	mm	φ80/φ125	φ80/φ125	φ127/φ200
	Large length of tool	mm	300	300	300
	High weight of tool	kg	10	10	15
other	Net weight of the machine tool	kg	6800	5500	6700
other	External dimensions	mm	310025002800	260023802400	350023002650
