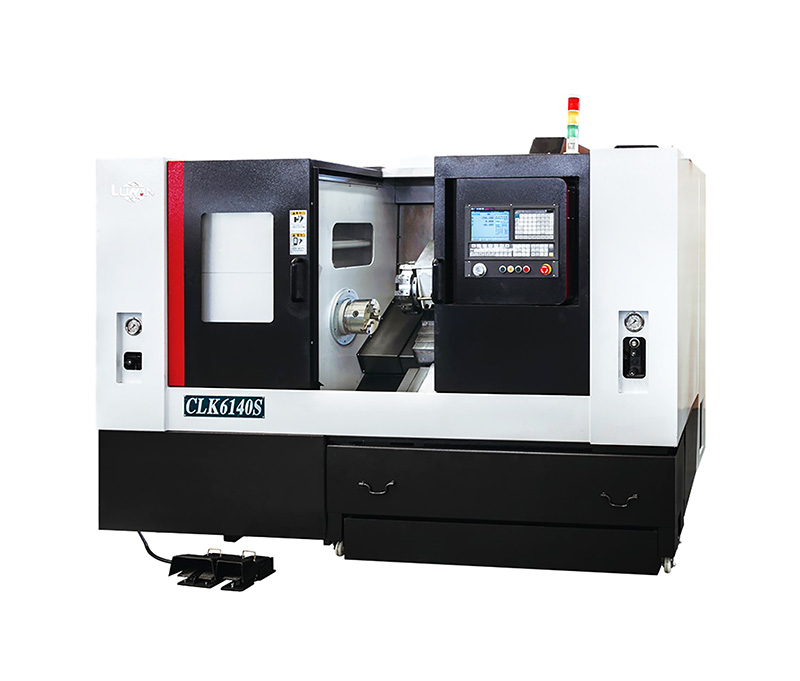

CLK6140S CNC lathe

Availability:

Quantity:



Inquire Add to Basket

Model:
CLK6140S

Product Description

Structural features:

1. The 30° inclined bed and base are integrated design to maintain good and long-term high rigidity and stability.

2. Both the X and Z axes use linear rolling guides with high precision, high load capacity and high reliability.

3. The tailstock can be driven hydraulically to achieve long-stroke integrated movement.

4. High-speed, high-precision, and high-rigid elastic shell spindle unit.

5. It has two linear axes X and Z.

6. Especially suitable for high-speed and high-precision processing of medium and small discs and shaft parts.

Standard configuration:

Select configuration:

1.8-inch three-claw hydraulic chuck (including soft claws) and rotary cylinder;
2. The rated power of the servo spindle motor is 7.5KW;
3.8-station servo turret/cutter (depending on the model);
4. Z-axis rigid tapping (depending on the model);
5. External cooling system;
6. Manual chip removal;
7. Full-protective sheet metal outer shield and internal screw and rail shield;
8. CNC system: GSK980TD.

1. CNC system: new generation, Kanedi, FANUC, Siemens or others;
2. Automatic chip removal;
3. Servo tailstock (depending on the model);
4. Vehicle function (depending on the model)
5. Elastic chuck and chuck;

6. Knife fitting instrument and bar feeder.

Technical parameters:

project		unit	CLK6140S	CLK6440A	CLK6440/1
Work scope	Large rotation diameter of the bed	mm	φ540
	Large slewing diameter on the sled	mm	φ270		φ200
	Large machining diameter (disc)	mm	φ400
	Large processing length	mm	550	235
Spindle	Spindle end specifications		A2-6/A2-8	A2-6
	Spindle inner cone	mm	Metric Ф80
	Hydraulic chuck	寸	8'/10'
	Bar diameter	mm	φ50
	Spindle speed range	r/min	30-4000
	Spindle motor power	KW	7.5
Knife Tower	Dot Tower Type		Horizontal		Rolling knife
	Number of trunk positions	把	8
	Square handle tool size	mm	□25
	Round hole tool diameter	mm	φ25
journey	X-axis stroke	mm	220		350
	Z-axis stroke	mm	600	245	275
Feed	X-axis fast movement	m/min	18	12
	Z-axis moves quickly	m/min	18
	Cutting feed	mm/min	1-5000
Tail seat	Tail seat feed method		Integrated hydraulic drive	-
	Tail seat inner cone	MT	MT5	-
	Tail seat stroke	mm	450	-
guide	Bed rail inclination angle	度	30°
	Rail type		All lines
	Single rail width X/Z/W axis (tail seat)	mm	35/45/45	35/45
Wire screw	X-axis	mm	Ф32*08	Ф32*06
	Z-axis	mm	Ф40*10	Ф40*08
Accuracy	Positioning accuracy	mm	±0.008
	Repeat positioning accuracy	mm	±0.004
other	Net weight of the machine tool	kg	3500	3000
	Dimensions: left and right X front and rear X up and down	mm	280017501870	215018401750
