VMC745T
Structural features:

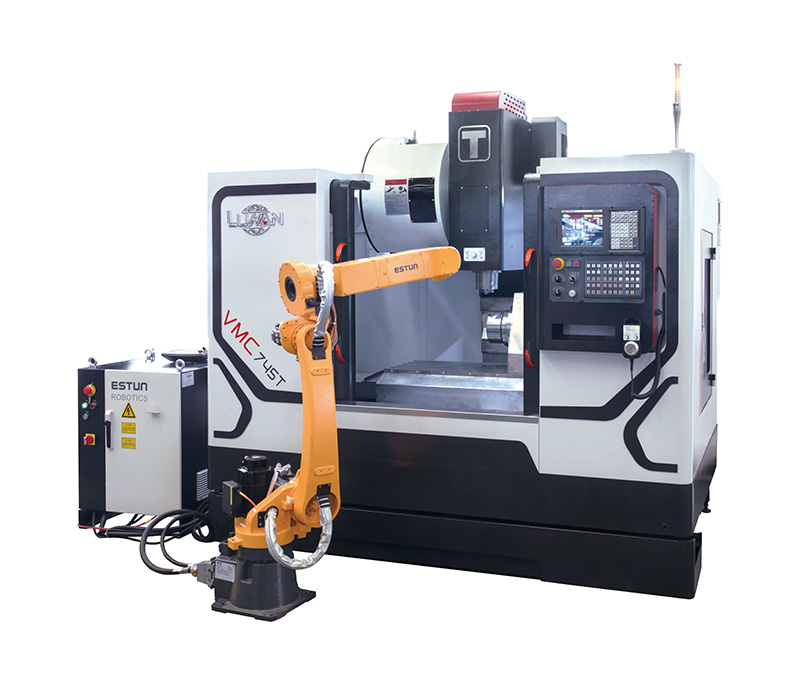

This product is innovatively designed using a standard vertical machining center. It not only retains all the functions of the vertical machining center, but also adds the fourth axis and turning functions to achieve composite milling and turning. It has the advantages of strong versatility, wide use range, high cost performance, and rich expansion functions. According to the needs of the machining parts, it can be equipped with tailstocks, industrial robots and other accessories to realize automatic loading and unloading and composite processing of various shapes of parts. The above characteristics can also be applied to vertical machining centers of other specifications.
Technical parameters:
| project | unit | VMC745T | |
| Work scope | X-directional itinerary | mm | 700 |
| Y-direction itinerary | mm | 450 | |
| Z direction itinerary | mm | 550 | |
| Distance from the spindle end surface to the workbench | mm | 120-670 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 460 | |
| Workbench | Workbench area | mm | 1000×450 |
| T-slot size | mm | 5-18-80 | |
| Large load bearing of workbench | kg | 600 | |
| Milling spindle | Spindle speed | r/min | 80-8000 |
| Spindle conical hole | BT40 | ||
| Spindle motor power | KW | 5.5/7.5 | |
| Car spindle | Spindle speed | r/min | 60-4000 |
| Spindle end specifications | A2-5 | ||
| Spindle motor power | KW | 11 | |
| C-axis small index | 度 | 0.001 | |
| Feed | X/Y axis moves quickly | m/min | 12 |
| Z-axis moves quickly | m/min | 10 | |
| Cutting feed | mm/min | 1-5000 | |
| guide | Rail type | Three-axis hard rail | |
| Accuracy | X/Y/Z Positioning Accuracy | mm | 0.016/0.012/0.012 |
| X/Y/Z Repeat positioning accuracy | mm | 0.01/0.008/0.008 | |
| C-axis indexing accuracy | Arc Seconds | 30 | |
| Tool library | Tool magazine form | disc | |
| Tool change speed (knife to knife) | 秒 | 1.8 | |
| Tool magazine capacity | 把 | 24 | |
| Large diameter of tool (next/empty) | mm | φ80/φ125 | |
| Large length of tool | mm | 300 | |
| High weight of tool | kg | 6 | |
| other | Net weight of the machine tool | kg | 4500 |
| External dimensions | mm | 2400×2500×2500 | |
