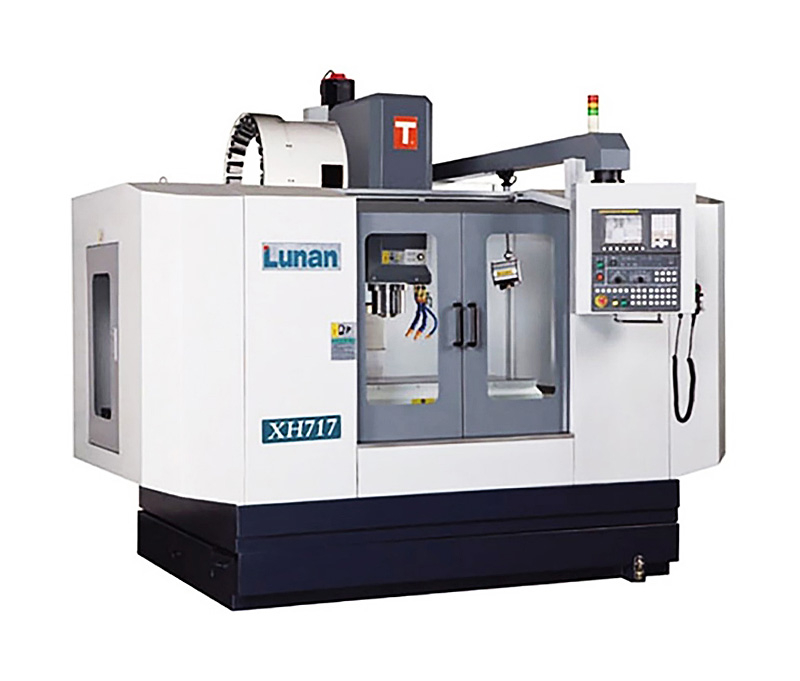

XH717A
| 1. Standard configuration | 2. Select configuration |
| 1. BT40 Taiwan spindle unit 60-8000rpm; 2. Servo spindle motor: motor power 7.5KW (36N.M); 3. Taiwan 16 hats knife magazine; 4. Centralized automatic oil lubrication; 5. External cooling system (including cooling pipes, chip connectors, cooling boxes, cooling pumps); 6. External air cooling; 7. Full protection sheet metal outer shield and internal screws and rail shield; 8. CNC system: FANUC 0i MF5; | 1. CNC system: Kanedi, Huazhong, SIEMENS, Mitsubishi or others; 2. Handheld air gun; 3. Fourth axis; 4. Disc 24 tool magazine; 5. Taiwan Central Water Extraction Spindle Unit; 6. Automatic chip ejector; 7. Tool setter. |
Technical parameters:
| project | unit | XH717A | XHS717A2 | XHS717A | |
| Work scope | X-directional itinerary | mm | 1300 | 1300 | 1300 |
| Y-direction itinerary | mm | 700 | 700 | 700 | |
| Z direction itinerary | mm | 650 | 700 | 700 | |
| Distance from the spindle end surface to the workbench | mm | 140-790 | 120-820 | 120-820 | |
| Distance from the center of the spindle to the column guide rail surface | mm | 785 | 762 | 762 | |
| Workbench | Workbench area | mm | 1400*710 | 1500*700 | 1500*700 |
| T-slot size | mm | 5-22-120 | 5-22-120 | 5-22-120 | |
| Large load bearing of workbench | kg | 1000 | 1000 | 1000 | |
| Spindle | Spindle speed | r/min | 60-6000 | 60-6000 | 60-6000 |
| Spindle conical hole | BT50 | BT50 | BT50 | ||
| Spindle motor power | KW | 15/18.5 | 15/18.5 | 15/18.5 | |
| Feed | X/Y axis moves quickly | m/min | 15 | 24 | 24 |
| Z-axis moves quickly | m/min | 12 | 12 | 18 | |
| Cutting feed | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| guide | Rail type | Three-axis hard rail | X/Y wire gauge, Z hard rail | Three-axis rail | |
| Accuracy | X/Y/Z Positioning Accuracy | mm | 0.020/0.016/0.016 | 0.016/0.016/0.016 | 0.016/0.016/0.016 |
| X/Y/Z Repeat positioning accuracy | mm | 0.012/0.008/0.008 | 0.01/0.008/0.008 | 0.01/0.008/0.008 | |
| Tool library | Tool magazine capacity (standard) | 把 | 24 | 24 | 24 |
| Large diameter of tool (next/empty) | mm | φ127/φ200 | φ127/φ200 | φ127/φ200 | |
| Large length of tool | mm | 300 | 300 | 300 | |
| High weight of tool | kg | 15 | 15 | 15 | |
| other | Net weight of the machine tool | kg | 10500 | 11000 | 10500 |
| External dimensions | mm | 3700*2920*3000 | 3730*2790*2900 | 3730*2790*2900 | |
