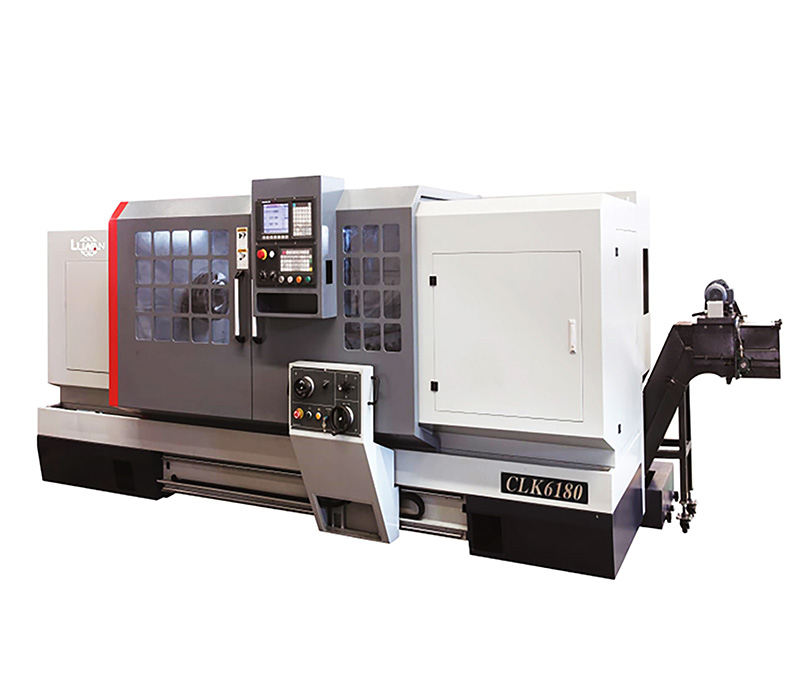

CLK6180 CNC lathe

Availability:

Quantity:



Inquire Add to Basket

Model:
CLK6180

Product Description

Structural features:

1. The overall casting structure of horizontal flat bed, aging treatment, and the overall machine has good stability.

2. Ultra-audio quenching of bed guide rails.

3. The joint surface of the bed saddle and the skateboard guide rail are 'plasticized' and the moving parts can prevent crawling.

4. The spindle speed speed regulation range is wide and multi-speed stepless speed regulation is adopted.

5. The appearance of the machine tool is reasonably protected and easy to maintain.

6. Follow-up control box for easy operation.

Standard configuration:

Select configuration:

1. Multi-speed gear (manual shift) speed regulation, stepless speed regulation in the gear; frequency converter motor;
2. Ordinary manual three-claw chuck;
3. Four-station electric tool holder;
4. Manual tailstock;
5. Fixed electronic handwheel;
6. Manual chip removal;
7. Double sliding door semi-protection;

8. GSK980TC3 CNC system.

1. CNC systems such as FANUC, Siemens, Kanedi, Guangtai, etc.; servo motors;
2. Moving hand pulses;
3. Ordinary four-claw chuck or hydraulic chuck;
4. Six/8 station electric tool holder;
5. Manual tool holder and center frame;
6. Hydraulic and pneumatic tailstock;
7. Automatic chip removal;

8. Double sliding doors are fully protected.

Technical parameters:

project		unit	CLK6180	CLK6163
Work scope	Large slewing diameter of bed	mm	φ800	φ630
	Large slewing diameter on the sled	mm	φ430	φ350
	Support length between two top tips	mm	1000/1500/2000/3000	1000/1500/2000/3000
	Turning length	mm	≤ 700/1200/1700/2700	≤ 700/1200/1700/2700
Spindle	Spindle rotation range	r/min	3rd gear: 25-850	3rd gear: 25-850
	Spindle through hole diameter	mm	φ102	φ98
	Bar diameter (standard)	mm	φ100	φ90
	Chuck diameter	mm	φ88	φ320
	Spindle end type		C11/D11 (standard)	C11/D11 (standard)
	Spindle taper hole taper	mm	Metric 120 (1:20)	Metric 120 (1:20)
	Spindle motor power	KW	11	11
Knife holder	Number of electric tool holders	把	4	4
Knife holder	Cutter size	mm	□32	□32
journey	X-directional itinerary	mm	450	360
journey	Z-directional itinerary	mm	700/1200/1700/2700	700/1200/1700/2700
Feed	Fast movement of X-axis	m/min	6	6
Feed	Z-axis moving quickly	m/min	10	10
Tail seat	Tail seat sleeve diameter	mm	φ100	φ100
	Taper taper of tail seat sleeve	Mo's	MT6	MT6
	Tail seat sleeve stroke	mm	250	250
guide	Bed rail width	mm	550	550
guide	Rail type		Hard track	Hard track
Accuracy	X/Z positioning accuracy	mm	0.030/0.035	0.030/0.035
Accuracy	X/Z repeat positioning accuracy	mm	0.012/0.016	0.012/0.016
other	Net weight of the machine tool	kg	4100/4400/4700/5600	3900/4200/4500/5400
other	Area	mm	3200/3700/4200/5200*1900	3200/3700/4200/5200*1820
