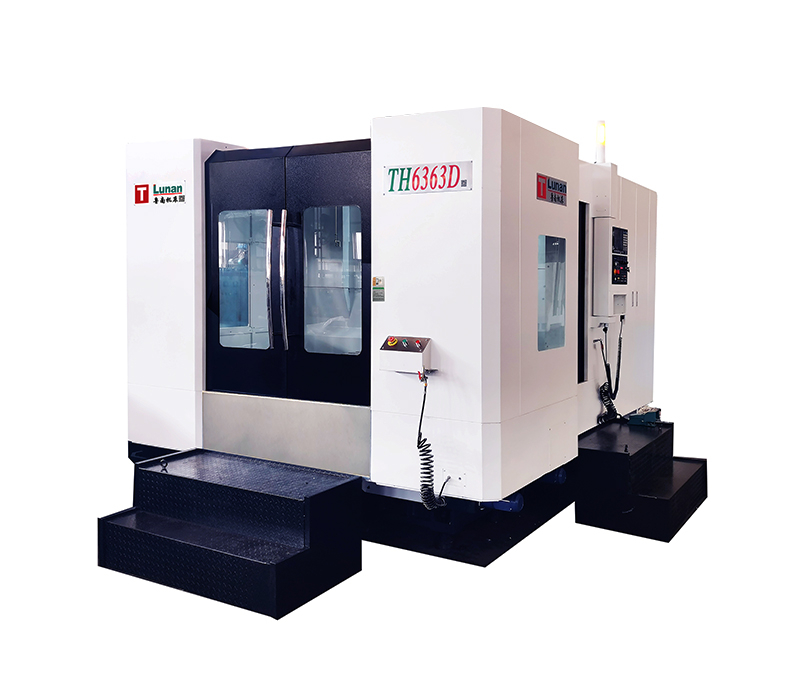

TH6363D horizontal machining center (inverted T)

Availability:

Quantity:



Inquire Add to Basket

Model:
TH6363D

Product Description

Structural features:

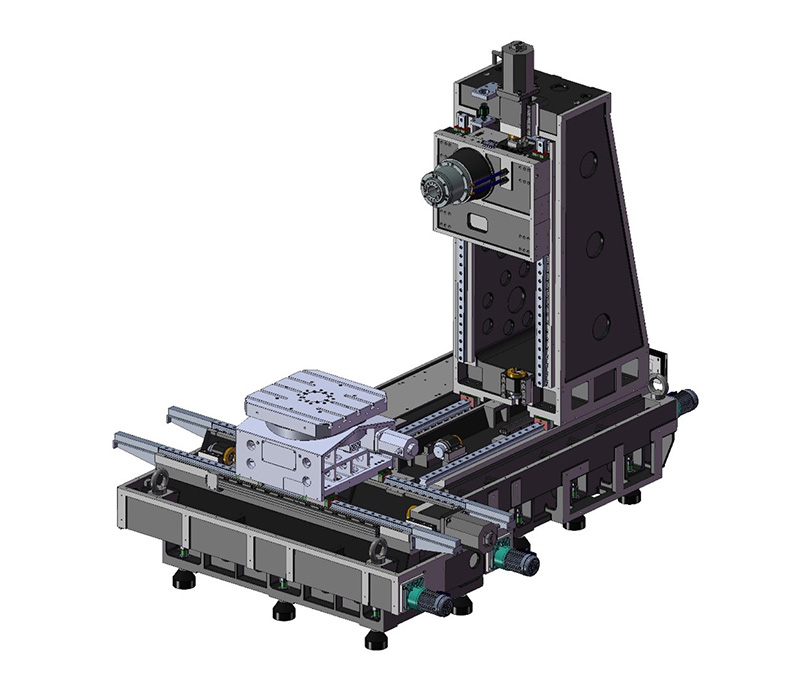

1. The overall layout of the machine tool adopts an inverted T-shaped structure with three points of support.

2. The column adopts the 'gantry' frame moving column structure.

3. The CNC rotary table adopts high-precision cross-roller bearings.

4. The X/Y/Z three axes use large pitch, high-precision, high-rigid ball screws and heavy-load roller rails.

5. The spindle adopts a high rigid structure design, and the BT50 conical hole is suitable for low-speed, strong and stable cutting.

6. The cooling system has good cooling effect and reduces the cost of consumables.

7. The fully protective design of the machine tool has a novel and unique appearance.

8. The machine tool can realize the coarse finishing processing of various box types, shells, molds and other complex parts at one time.

9. Adopt CNC control system and follow-up control box, which is convenient for operation, is a reflection of humanized design.

Standard configuration:

Select configuration:

1.FANUC 0i- MF5 CNC system;
2. CNC rotary table: minimum split angle 1°;
3. BT50 chain tool magazine/disc tool magazine;
4. Belt type BT50 central water outlet spindle, speed 6000RPM;
5. X, Y, Z axis heavy-load roller linear guide;
6. External cooling system;
7. Pneumatic system;
8. Spindle box automatic balancing system;
9. Hydraulic system;
10. Automatic chip removal system;

11. Full protection.

1. CNC system: FANUC 0i- MF1/3, Kanedi, Huazhong, SIEMENS, Mitsubishi or others;
2. CNC rotary table: minimum split angle 0.001°;
3. Belt type BT50 central water outlet spindle, speed 10000 RPM;
4. Central water outlet machine;
5. Non-center water outlet spindle or direct-connected spindle;
6. Manual chip removal system;

7. Full protection of external protection with rain curtain spray.

project		unit	TH6380D	TH6363D
Work scope	X-directional itinerary	mm	1300	1100
	Y-direction itinerary	mm	1000	800
	Z direction itinerary	mm	1000	900
	Distance from the end face of the spindle to the center of the workbench	mm	250-1350	150-1050
	Distance from the center of the spindle to the work surface	mm	50-1050	130-930
Spindle	High spindle speed	r/min	6000
	Spindle conical hole		BT50/190
	Spindle motor power	KW	15/18.5
Workbench	Workbench area	mm	1000*1000	630*630
	Large load capacity of workbench	kg	1800	1500
	Large workpiece rotation diameter	mm	Ф1500	Ф1300
	T-slot size	mm	7-18*100
	Small segmentation angle of B axis	deg	1°/0.001°
	Grading accuracy	'	10
	Repeat accuracy	'	±2'
Tool library	Tool magazine capacity (standard)	把	40	24/30
	Tool (near/empty) large diameter	mm	φ125/φ230	φ125/φ230
	Large length of tool	mm	350	350
	High weight of tool	kg	18	12
Feed	X/Y/Z axis moves quickly	m/min	24/24/24
Feed	Cutting feed speed	mm/min	1-10000
guide	Rail type		Three-axis rail
Accuracy	Positioning accuracy	mm	0.018	0.016
Accuracy	Repeat positioning accuracy	mm	0.01	0.01
other	Net weight of the machine tool	kg	16500	15500
other	External dimensions	mm	620044004000	567041503570
