TF40D
Structural features:

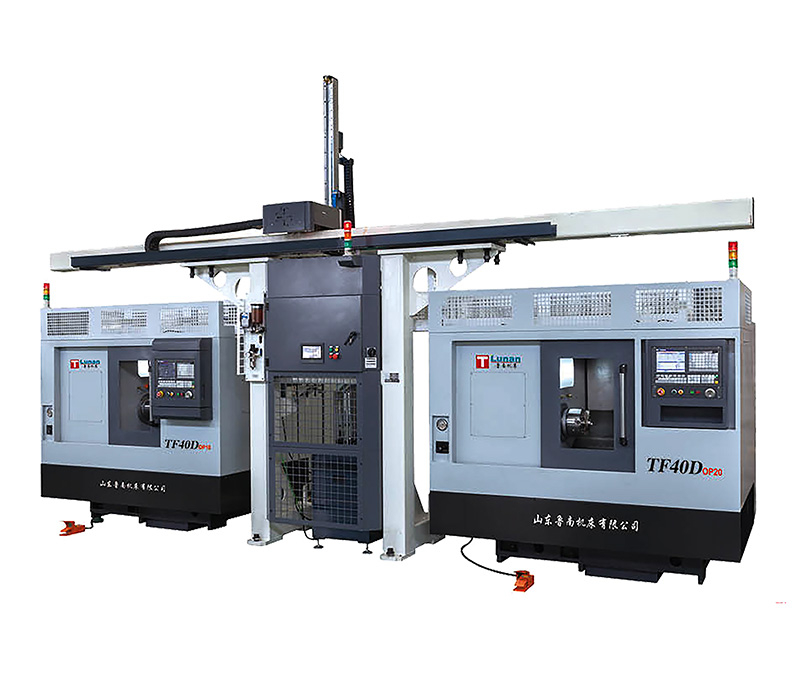

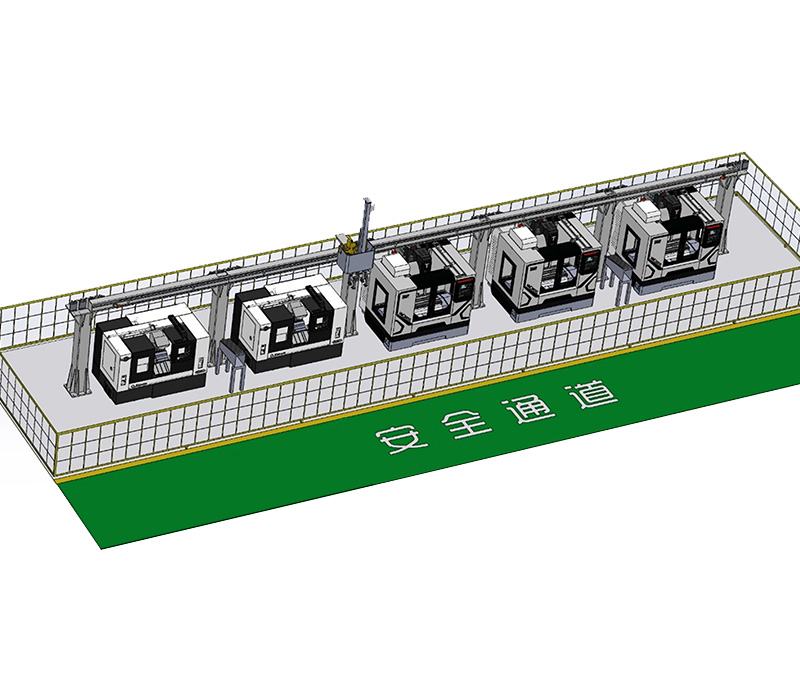

This product is composed of two inclined bed CNC lathes and a set of truss robots. The CNC lathe is located on both sides of the truss robot, and the multi-station silo is located in the middle. Adding materials at one time can automatically complete the processing of all surfaces of the parts. This product can be used as a single set, or it can be used in multiple sets of series and parallel connections to form an automatic production line with complex processes. It is suitable for automatic and efficient processing of disc parts, and has many advantages such as high standardization, convenient operation and maintenance, and high cost-effectiveness.
Technical parameters:
| project | unit | parameter | |
| Work scope | Large workpiece rotation diameter | mm | φ400 |
| Large machining diameter | mm | φ200 | |
| Large processing length | mm | 100 | |
| Spindle | Spindle speed | r/min | 30-4000 |
| Spindle end specifications | A2-6 | ||
| Spindle motor power | kw | 5.5/7.5 | |
| Hydraulic chuck | 寸 | 8 | |
| Knife holder | Number of trunk positions | 把 | 8 |
| Number of knife positions | 把 | 4 | |
| Turning tool square/boring tool rod diameter | mm | □ 20/φ25 | |
| guide | Rail type | All ball wire tracks | |
| journey | X-axis stroke | mm | Drilling: 350 Dot: 220 |
| Z-axis stroke | mm | Drilling: 270 Dot: 270 | |
| Feed | Fast movement of X-axis | m/min | 16 |
| Z-axis moving quickly | m/min | 18 | |
| Wire screw | X-axis specifications | mm | φ32*8 |
| Z-axis specifications | mm | φ40*10 | |
| Accuracy | Machine tool positioning accuracy | mm | 0.016 |
| Repeat positioning accuracy of machine tool | mm | 0.008 | |
| other | Machine tool weight (stand-alone) | kg | 3000 |
| Dimensions (length*width*height) | mm | Standalone: 2100*3500*2100 | |
| mm | Full line: 6200*3500*4100 | ||
