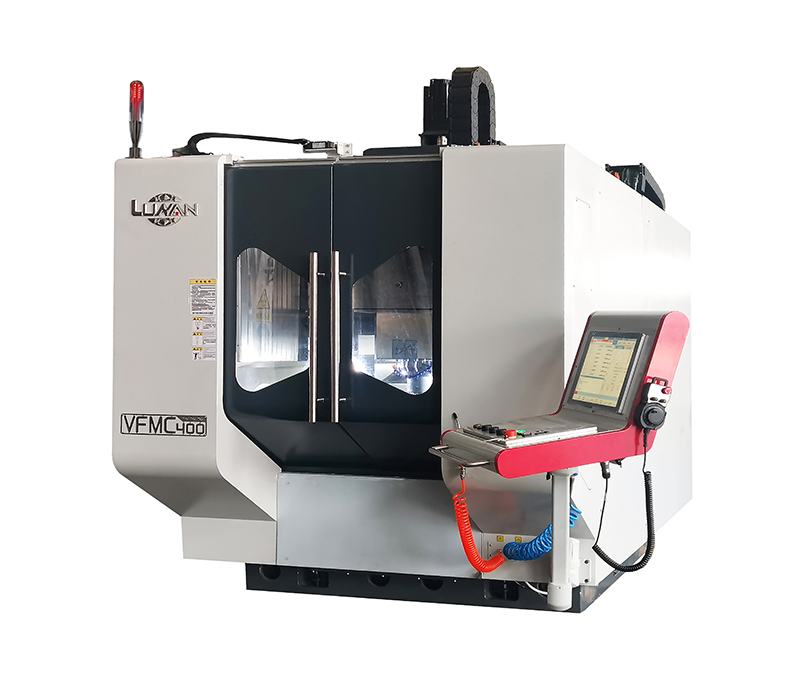

VFMC400 Cradle-type Five-axis machining center

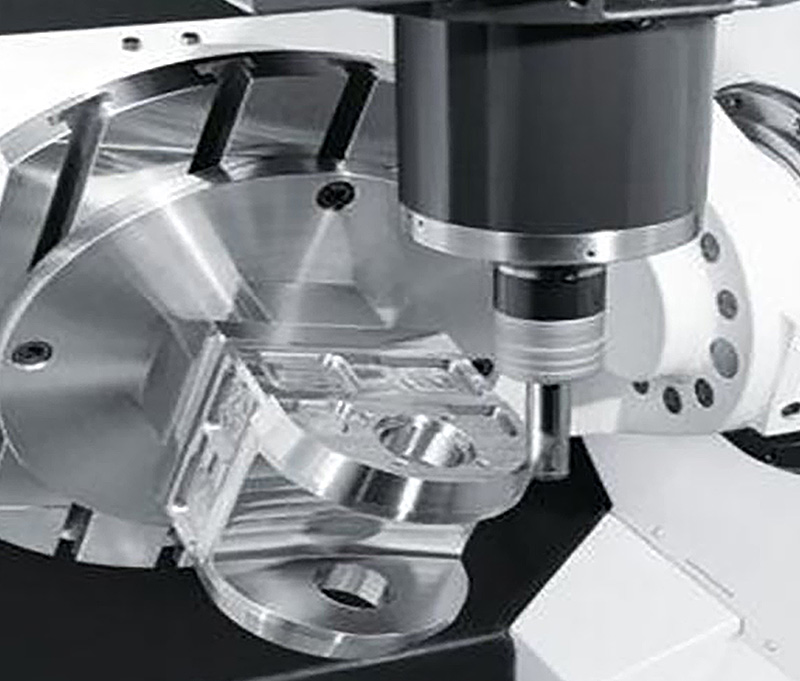

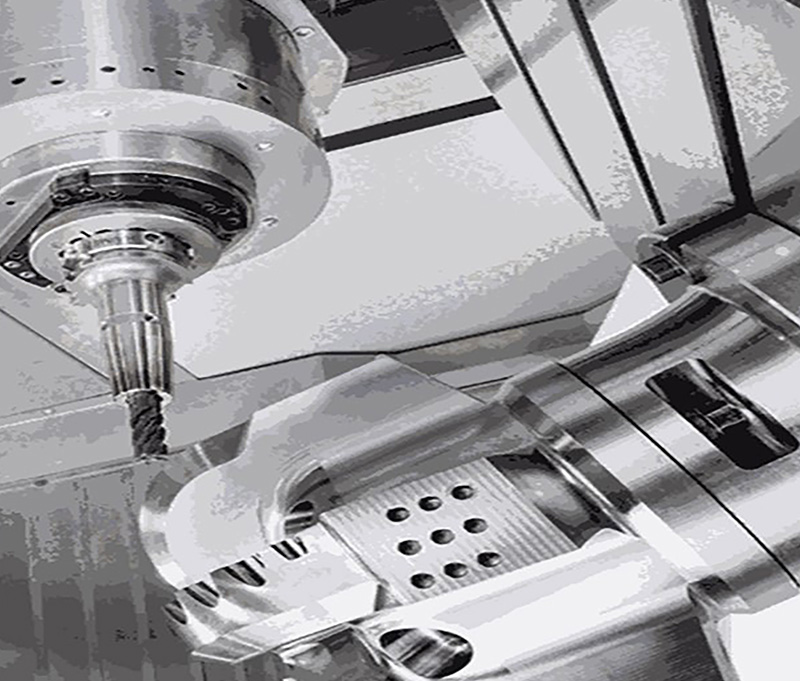

The machine tool can meet the thick, semi-finished and precise five-axis linkage processing of small and medium-sized complex parts. The workpiece can be continuously processed in other parts except the installation surface through one clamping. It has many functions such as milling, boring, drilling, expansion, reaming, rigid tapping, etc., and has greater advantages in the processing of typical complex curved parts such as impellers, turbines, steering knuckles, medical devices, and molds.

Availability:

Quantity:



Inquire Add to Basket

Model:
VFMC400

Product Description

Structural features:

1. The overall structure of this series of five-axis machining centers is a vertical structure, which belongs to a typical van style.

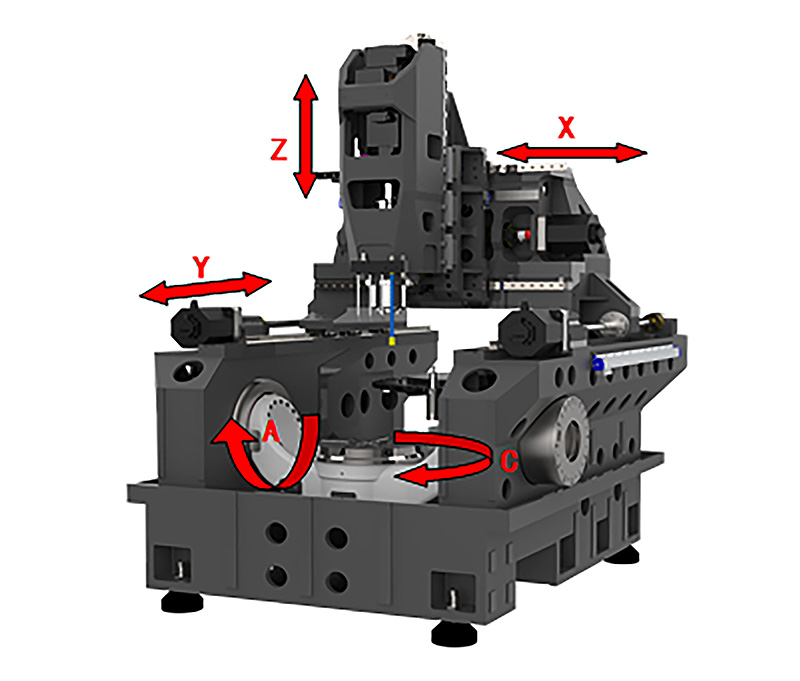

2. The Z axis moves in a vertical direction, while the X axis and Y axis move in the upper plane of the workbench left and right and front and back directions, and the front and back guide rails are symmetrically arranged on the left and right sides of the machine tool.

3. The other two axes are typical cradle-type A and C rotating shafts, and are directly driven by good-performance torque motors.

4. The machine tool has a reasonable structure, beautiful appearance, compact and generous operation; safe and ergonomic.

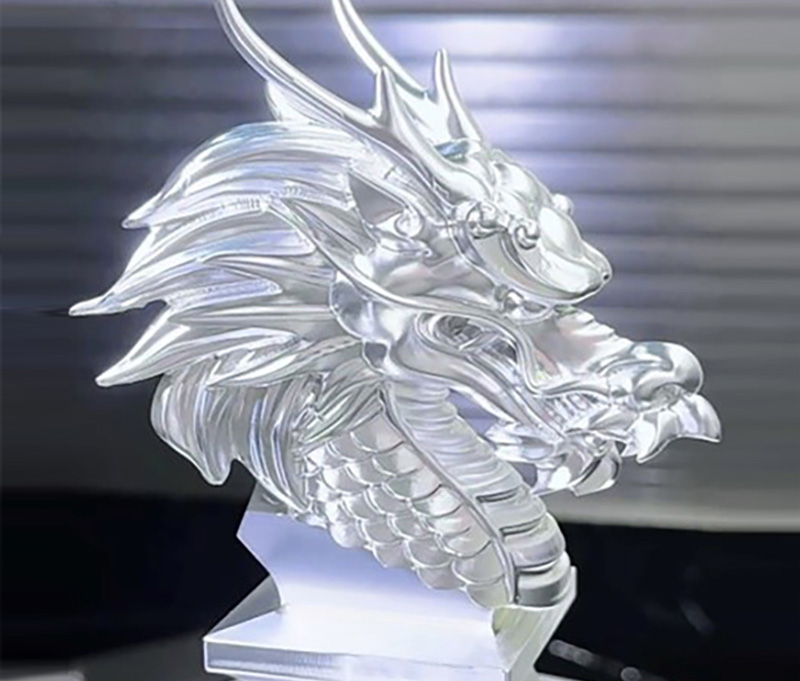

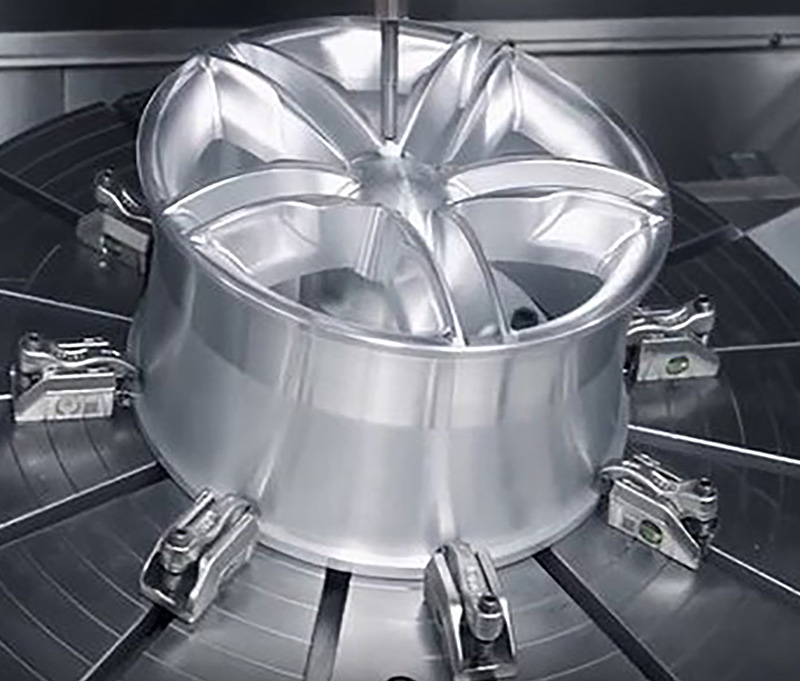

5. The machine tool can meet the thick, semi-finished and precise five-axis linkage processing of small and medium-sized complex parts. The workpiece can complete continuous processing of other parts except the installation surface through one clamping. It has many functions such as milling, boring, drilling, expansion, reaming, rigid tapping, etc., and has greater advantages in the processing of typical complex curved surface parts such as impellers, turbines, steering knuckles, medical devices, and molds.

Standard configuration:

Select configuration:

1. BT40 direct-connected spindle, high speed of 12000 r/min;
2. Spindle motor power 7.5KW;
3. Cradle direct drive A and C rotary workbenches;
4.20 disc tool magazine;
5. External cooling system;
6. Automatic chip removal;
7. Full protection sheet metal outer shield and internal lead screw and rail shield;
8. Water cooler, electric cabinet air conditioner;
9. CNC system: Huazhong 848D.

1. CNC system: new generation, SIEMENS, Heidenham or others;
2. HSK A63 electric spindle 18000r/min;
3. Spindle motor 11KW/electric spindle 27.5KW;
4. Large-capacity chain tool magazine;
5. Spindle center water outlet;
6. Tool gauge and workpiece probe;

7. Full closed-loop control.

Technical parameters:

project		unit	VFMC400	VFMC650	VFMC800
Work scope	Turntable size	mm	φ400	φ650	φ800
	Turning Taiwan's large load bearing	kg	200	800	1000
	Large slewing diameter	mm	φ550	φ800	φ1000
Spindle	Spindle specifications		BT40/HSK A63
	High spindle speed	r/min	12000/20000
	Main motor power	KW	7.5 (mechanical spindle) / 27.5 (electrical spindle)
journey	X-axis stroke	mm	450	700	850
	Y-axis stroke	mm	550	780	950
	Z-axis stroke	mm	350	550	550
	A-axis stroke	deg	±120
	B-axis stroke	deg	360
	Vertical distance from the nose end of the spindle to the work surface	mm	150-500	150-700	150-700
Feed	X/Y/Z axis moves quickly	m/min	X/Y/Z: 36	X/Y/Z: 30
Feed	A/C axis moves quickly	r/min	A: 30/C: 80
Accuracy	X/Y/Z axis positioning accuracy	mm	X/Y/Z:0.01
	X/Y/Z axis repeat positioning accuracy	mm	X/Y/Z:0.005
	A/C axis positioning accuracy	Arcsec	A: 12/C: 10
	A/C axis repeat positioning accuracy	Arcsec	A: 6/C: 5
guide	Bed rail width	mm	X/Y/Z: 45/45/45
guide	Rail type		Line meter
Tool library	Tool specifications		BT40/HSK A63
	Tool magazine capacity	把	20T/24T/Others
	Large tool length	mm	250
	Allowable weight of large cutter	kg	8
other	Net weight of the machine tool	kg	7500	11000	13000
other	Area	mm	250046004000	350050004100	400050004200
